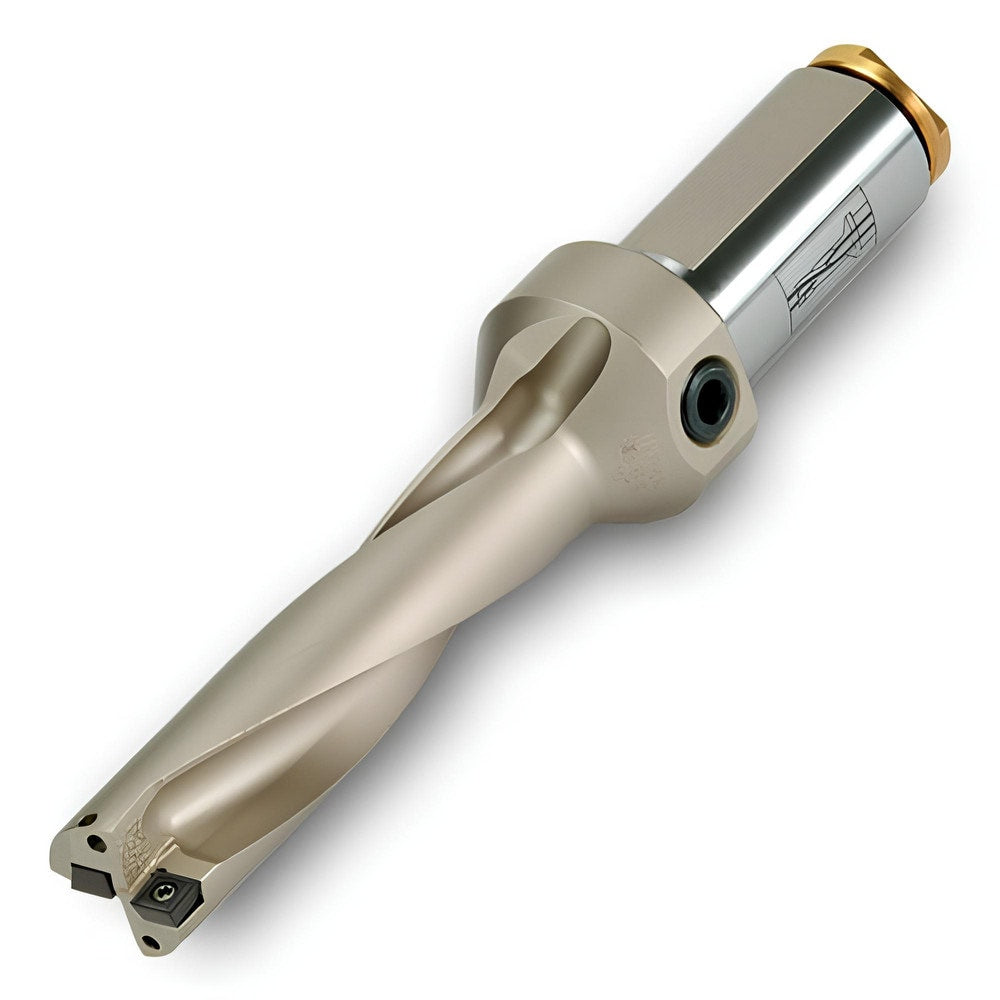

Brand: Ingersoll Cutting Tools / Part #: 6180778

Brand: Ingersoll Cutting Tools / Part #: 6180778


Item #: 35623651
Brand: Ingersoll Cutting Tools
Model #: 6180778

Product Specifications

Maximum Drill Depth 7.0000 in
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (Decimal Inch) 7.0000
Shank Type Weldon Flat
Shank Diameter (Inch) 1-1/4
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 9.1300
Toolholder Style Q044
Nose Diameter (Decimal Inch - 4 Decimals) 1.7500
Overall Length (Decimal Inch) 11.4900
Overall Length 11.49
Through Coolant Yes
Series Q
Flute Length (Decimal Inch) 7.0000
Shank Length (Decimal Inch) 2.3600
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Flute Type Slow Spiral
Maximum Cutting Diameter (Decimal Inch) 1.7500
Number Of Flutes 2
Coolant Through Yes
