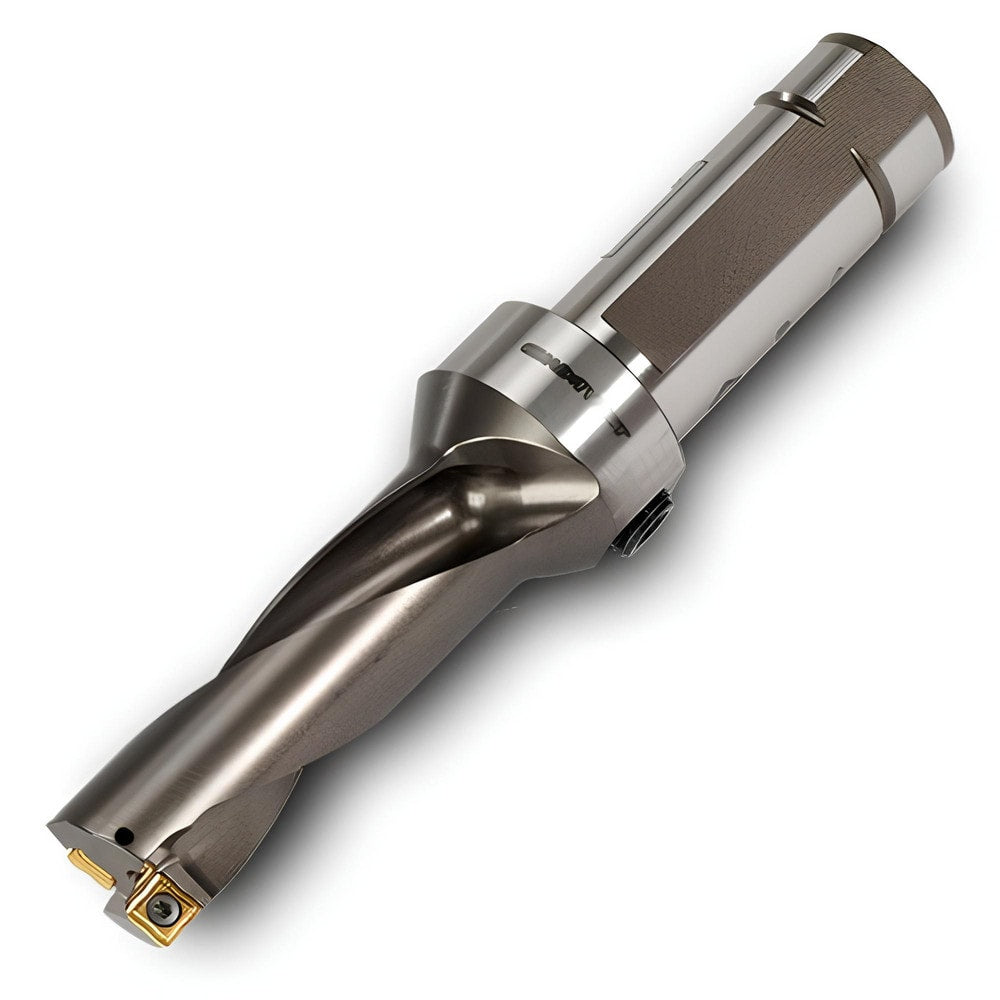

Brand: Ingersoll Cutting Tools / Part #: 6108625

Brand: Ingersoll Cutting Tools / Part #: 6108625


Item #: 30236293
Brand: Ingersoll Cutting Tools
Model #: 6108625

Product Specifications

Maximum Drill Depth 7.2500 in
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (Decimal Inch) 7.2500
Shank Type Combination
Shank Diameter (Inch) 1-1/2
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 8.8200
Toolholder Style QR04
Nose Diameter (Decimal Inch - 4 Decimals) 1.8130
Overall Length (Decimal Inch) 11.9700
Overall Length 11.97
Through Coolant Yes
Series QR
Flute Length (Decimal Inch) 7.2500
Shank Length (Decimal Inch) 3.1600
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Flute Type Slow Spiral
Maximum Cutting Diameter (Decimal Inch) 1.8130
Number Of Flutes 2
Coolant Through Yes
