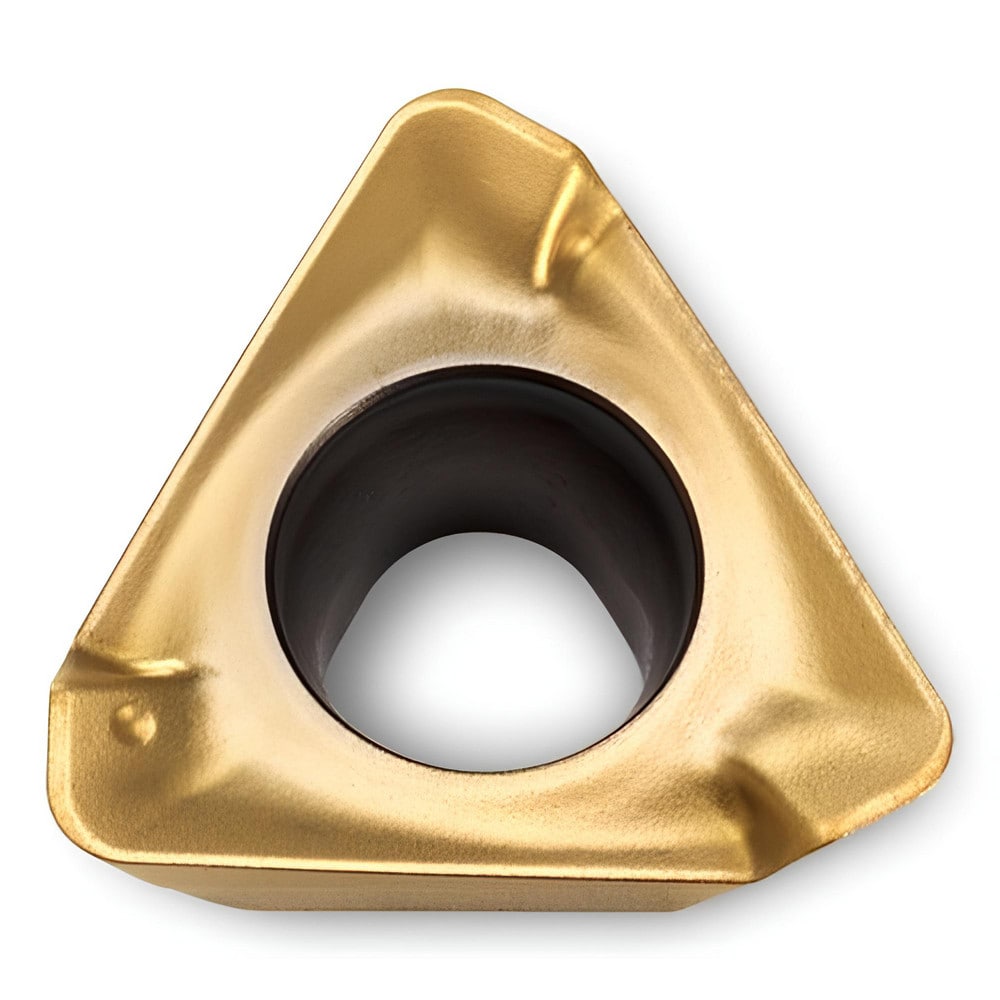

Brand: Ingersoll Cutting Tools / Part #: 5813476
Item #: 64638448
Brand: Ingersoll Cutting Tools
Model #: 5813476
Product Specifications
| Insert Style | THLS |
| Insert Size Code | 060408 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2510 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.2720 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | THLS |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2700 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | THLS060408R |
| Manufacturers Catalog Number | THLS060408R IN2510 |
| Cutter Series Compatibility | 1K.1D; KJ5D; KJ6D |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Length of Cut (mm) | 6.8600 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 60 |
| Multi-Use Tool | Yes |
