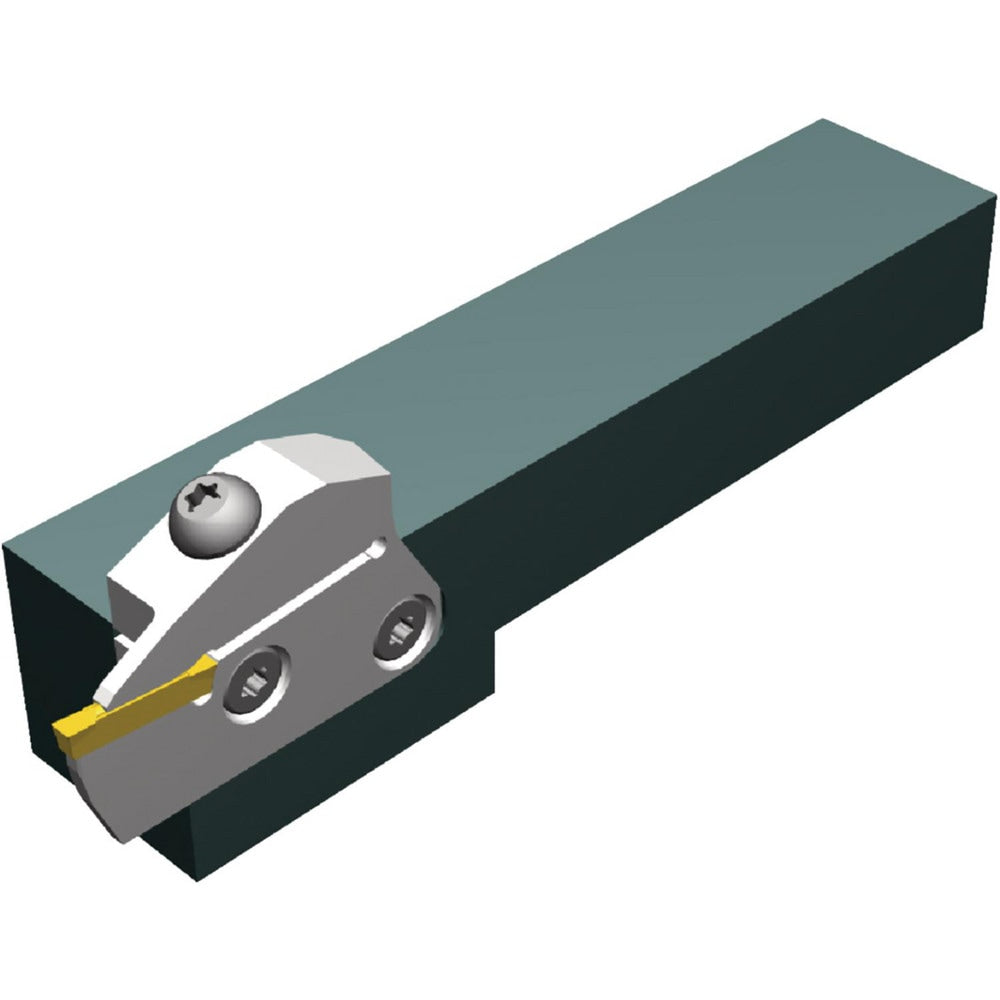

Brand: Widia / Part #: 5349627

Brand: Widia / Part #: 5349627


Item #: 98387616
Brand: Widia
Model #: 5349627

Product Specifications

Internal or External External
Maximum Depth of Cut (mm) 22.00
Hand of Holder Left Hand
Maximum Groove Width (mm) 6.00
Minimum Groove Width (mm) 1.40
Toolholder Style WGMSL
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0600; 0400; 0500; 0200; 0300; 0100; 094
Shank Height (mm) 25.00
Shank Length (mm) 95.780
Shank Width/Diameter (mm) 25.00
Series WMT
Overall Length (mm) 126.0000
Cutting Tool Application Grooving; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 0.5450
Head Height (mm) 31.560
Head Length (mm) 30.22
Primary Workpiece Material Universal
Insert Seat Size 100.0
Coolant Through No
$132.34
