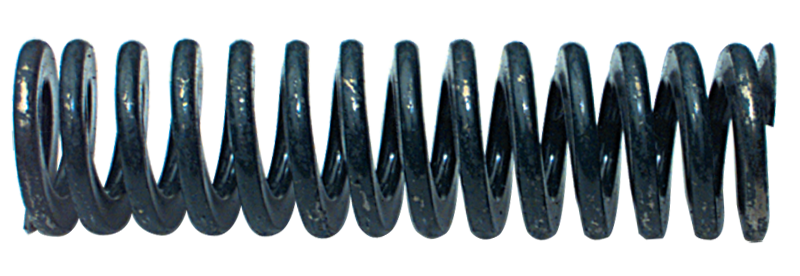

Die Spring - 3/8 x 3/16'' Wire Size, Fits Over Hole Size (1-3/4''), Fits Over Stud Size (7/8''), Solid Height (4-5/8'') - Apex Tool & Supply

Die Spring - 3/8 x 3/16'' Wire Size, Fits Over Hole Size (1-3/4''), Fits Over Stud Size (7/8''), Solid Height (4-5/8'')


Item #: SM51R68
Manufacturer: Generic USA
Mfg #: R-68

Technical Specifications:
*Brand Name: Generic USA *Free Length: 8 *Hand Tools Capacity at Safe Deflection: 950 lbs *Hand Tools Safe Deflection: 3-5/16 *Rate per 1/8" Deflection: 36 lbs *Regular Speed Presses Capacity at Safe Deflection: 600 lbs *Regular Speed Presses Safe Deflection: 2-3/32 *Solid Height: 4-5/8 *Spring will Fit Hole Size: 1-3/4 *Spring Will Fit Over Stud Size: 7/8 *Wire Size: 3/8 x 3/16

Description:
*Medium-Heavy Pressure Die Springs *For Stripper Plate - Pressure Pad - Knock-Out *For best results in using springs, do not depress spring more than: 1/2 maximum deflection for light or high speed presses; 3/4 maximum deflection for heavy or slow speed presses.

Shipping Info:
*Actual Weight - 1.6320
$34.25
