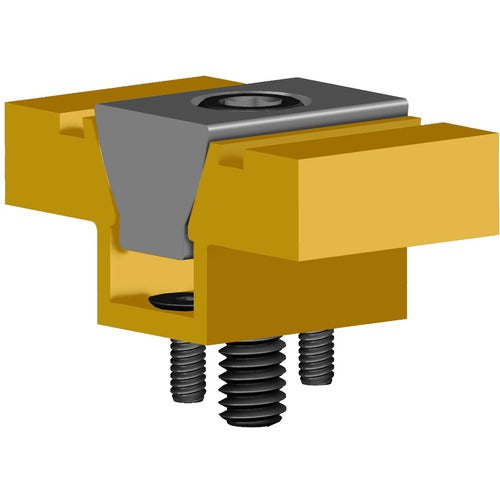

#80055 - M4 Thread Size Machine Uniforce Clamp without Locking Plate
Item #: SG7080055
Brand: Mitee-Bite
Model #: 80055
| Product Specifications | |
|---|---|
| Type | Uniforce Clamp |
| Holding Force | 1,640 lbs |
| Thread Size | M4 |
| Clamp Length | 15.7 mm |
| Overall Length | 15.7 mm |
| Outer Edge Screw | M2 |
| Overall Width | 28.6 mm |
| Style | Metric |
| Model No | 500 |
| Contact Depth | 6.3mm |
| Clamp Height | 12.7 mm |
| Machineable Stock | 4.6mm |
| Base Width | 10.67 mm |
| Centerline Distance | 4.6 mm |
