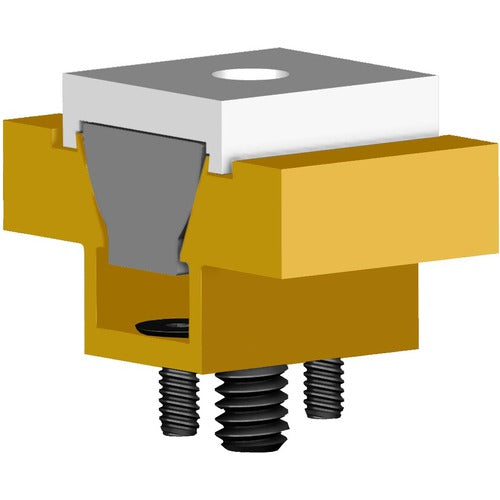

Model 60075 - 1/4″-20 Thread Size - Machinable Uniforce Clamp with Locking Plate
Item #: SG7060075
Brand: Mitee-Bite
Model #: 60075
| Product Specifications | |
|---|---|
| Type | Uniforce Clamp |
| Includes | 1 Clamp Assembly with Locking Plate |
| Thread Size | 1/4″-20 |
| Clamp Length | .940″ |
| Overall Length | .940″ |
| Outer Edge Screw | #6-32 |
| Overall Width | 1 1/2″ |
| Style | Inch |
| Model No | 60075 |
| Contact Depth | 0.370″ |
| Clamp Height | 3/4″ |
| Machineable Stock | 0.260″ |
| Base Width | .632″ |
| Centerline Distance | 0.625″ |
| Holding Force | 1,500 lbs |
