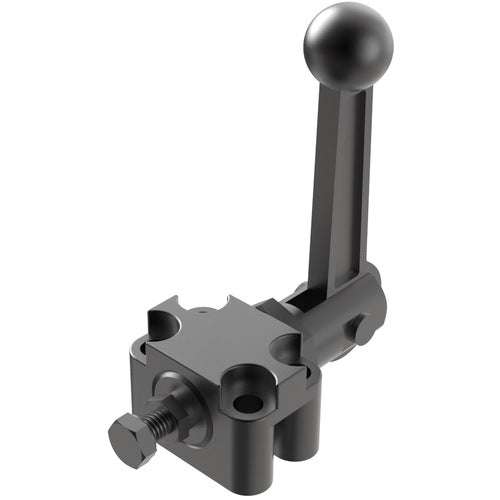

1,460 lbs (Hand), 6,750 lbs (Mallet) Capacity - Plunger - Magna Force Push Clamps - Heavy Duty Cam Clamps
Item #: SG6772413
Brand: Jergens
Model #: 72413
| Product Specifications | |
|---|---|
| Style | Magna Force Push Clamps |
| Mounting Diameter | 0.406″ |
| Type | Heavy Duty Cam Clamps |
| Mounting Length | 0.984″ |
| Arm | 2.283″ |
| Mounting Width | 1.969″ |
| Height Under Clamp Arm | 0.669″ |
| Overall Width | 2.677″ |
| Holding Capacity | 1,460 lbs (Hand), 6,750 lbs (Mallet) |
| Plunger Travel | 0.433″ |
| Overall Height | 6.496″ |
| Spindle Size | M12 × 35 |
| Overall Length | 4.045″ |
| Base Length | 0.406″ |
| Thread Size | M12 |
| Plunger Diameter | 0.63″ |
| Includes | Set screw and nuts, mountingbase and locknuts |
| Series | Magna Force |
| Bar Style | Plunger |
