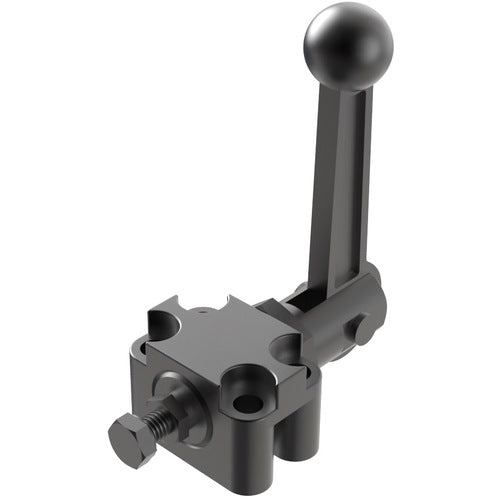

1,460 lbs (Hand), 4,500 lbs (Mallet) Capacity - Plunger - Magna Force Push Clamps - Heavy Duty Cam Clamps
Item #: SG6772412
Brand: Jergens
Model #: 72412
| Product Specifications | |
|---|---|
| Style | Magna Force Push Clamps |
| Mounting Diameter | 0.327″ |
| Type | Heavy Duty Cam Clamps |
| Mounting Length | 0.787″ |
| Arm | 1.732″ |
| Mounting Width | 1.417″ |
| Height Under Clamp Arm | 0.473″ |
| Overall Width | 1.969″ |
| Holding Capacity | 1,460 lbs (Hand), 4,500 lbs (Mallet) |
| Plunger Travel | 0.276″ |
| Overall Height | 4.764″ |
| Spindle Size | M8 × 25 |
| Overall Length | 3.307″ |
| Base Length | 1.339″ |
| Thread Size | M8 |
| Plunger Diameter | 0.472″ |
| Includes | Set screw and nuts, CMB24 mountingbase and locknuts |
| Series | Magna Force |
| Bar Style | Plunger |
