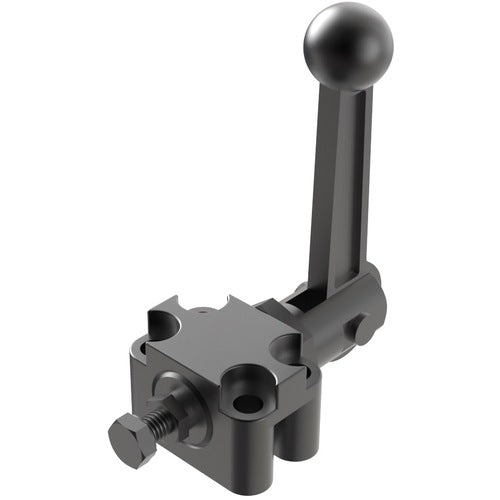

1,350 lbs (Hand), 2,700 lbs (Mallet) Capacity - Plunger - Magna Force Push Clamps - Heavy Duty Cam Clamps
Item #: SG6772411
Brand: Jergens
Model #: 72411
| Product Specifications | |
|---|---|
| Style | Magna Force Push Clamps |
| Mounting Diameter | 0.25″ |
| Type | Heavy Duty Cam Clamps |
| Mounting Length | 0.591″ |
| Arm | 1.349″ |
| Mounting Width | 1.102″ |
| Height Under Clamp Arm | 0.374″ |
| Overall Width | 1.535″ |
| Holding Capacity | 1,350 lbs (Hand), 2,700 lbs (Mallet) |
| Plunger Travel | 0.205″ |
| Overall Height | 3.581″ |
| Spindle Size | M6 × 19 |
| Overall Length | 2.25″ |
| Base Length | 1.024″ |
| Thread Size | M6 |
| Plunger Diameter | 0.354″ |
| Includes | Set screw and nuts, mountingbase and locknuts |
| Series | Magna Force |
| Bar Style | Plunger |
