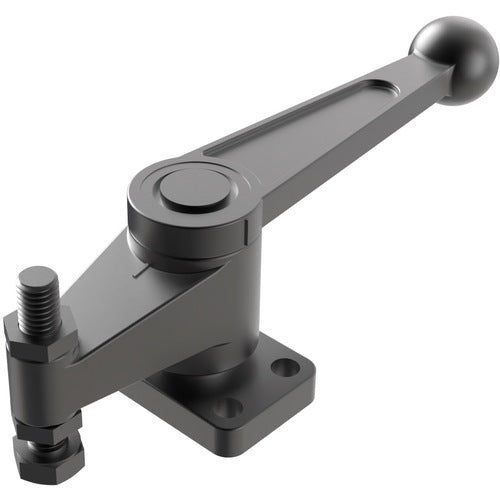

1,350 lbs (Hand), 2,700 lbs (Mallet) Capacity - Solid - Swing Clockwise - Heavy Duty Cam Clamps
Item #: SG6772409
Brand: Jergens
Model #: 72409
| Product Specifications | |
|---|---|
| Style | Magna Force Swing Clamps |
| Bar Style | Solid |
| Type | Heavy Duty Cam Clamps |
| Mounting Diameter | 0.327″ |
| Arm | 2.165″ |
| Mounting Length | 0.984″ |
| Height Under Clamp Arm | 1.024″ |
| Mounting Width | 1.969″ |
| Holding Capacity | 1,350 lbs (Hand), 2,700 lbs (Mallet) |
| Overall Width | 2.559″ |
| Overall Height | 3.031″ |
| Plunger Travel | 55 mm |
| Overall Length | 7.874″ |
| Spindle Size | M6 × 55 |
| Handle | Swing Clockwise |
| Base Length | 1.575″ |
| Thread Size | M6 |
| Series | Magna Force |
| Includes | Set screw and nuts |
