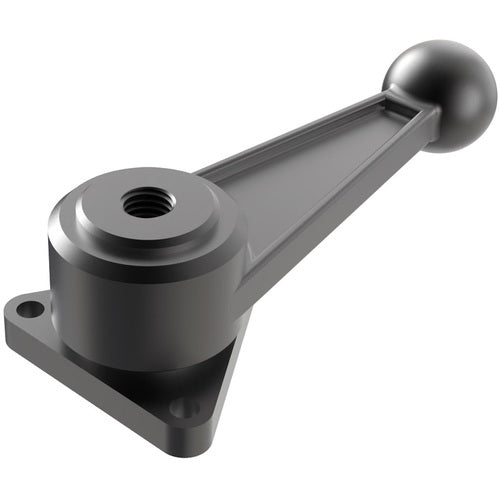

1,900 lbs (Hand), 11,240 lbs (Mallet) Capacity - Handle Clockwise - Magna Force Cam Clamps
Item #: SG6772403
Brand: Jergens
Model #: 72403
| Product Specifications | |
|---|---|
| Style | Magna Force Cam Clamps |
| Thread Size | M16 |
| Type | Heavy Duty Cam Clamps |
| Mounting Diameter | 0.326″ |
| Arm | 1.654″ |
| Mounting Length | 2.835″ PC Diameter |
| Height Under Clamp Arm | 0.433″ |
| Overall Width | 2.204″ |
| Holding Capacity | 1,900 lbs (Hand), 11,240 lbs (Mallet) |
| Plunger Travel | 0.314″ |
| Overall Height | 2.44″ |
| Spindle Size | M16 × 25 |
| Overall Length | 7.401″ |
| Series | Magna Force |
| Handle | Handle Clockwise |
