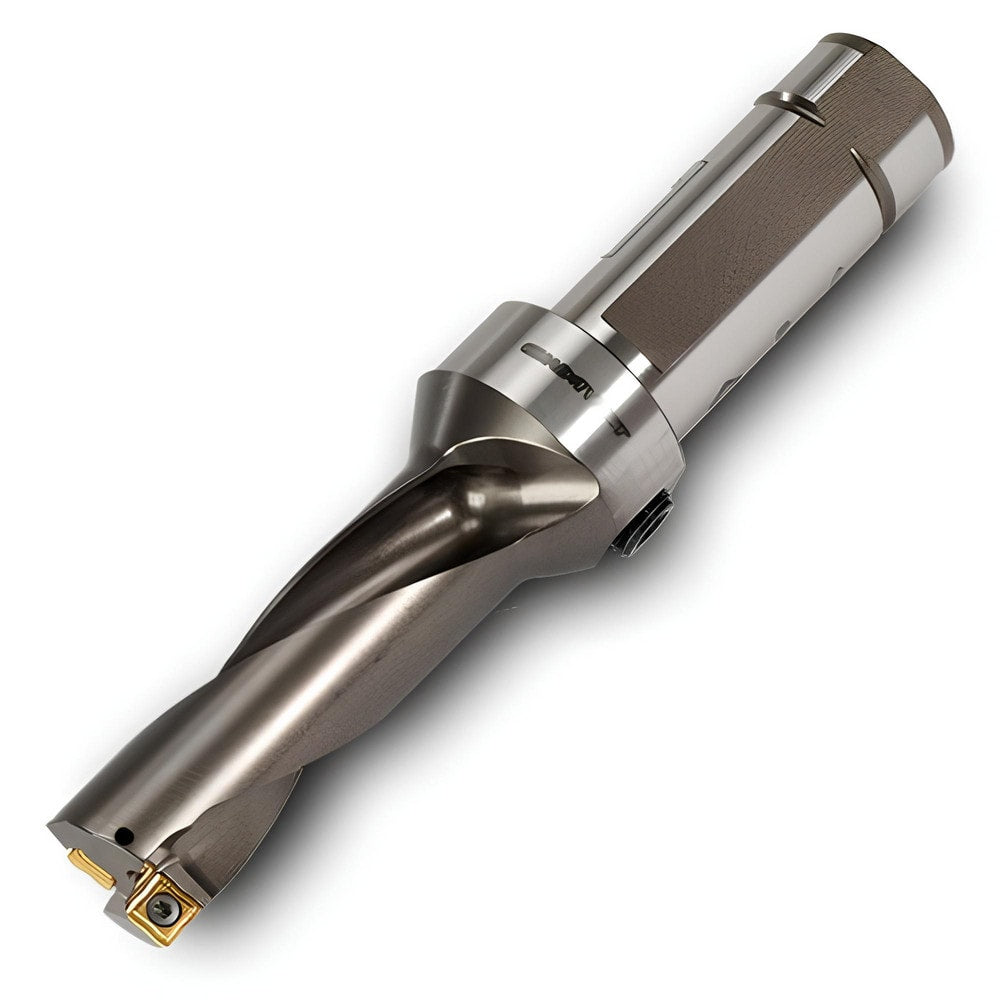

Brand: Ingersoll Cutting Tools / Part #: 6108587

Brand: Ingersoll Cutting Tools / Part #: 6108587


Item #: 73768186
Brand: Ingersoll Cutting Tools
Model #: 6108587

Product Specifications

Maximum Drill Depth 2.9400 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (Decimal Inch) 2.9400
Shank Type Combination
Shank Diameter (Inch) 1-1/4
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 111.00
Toolholder Style QR03
Nose Diameter (Decimal Inch - 4 Decimals) 1.4680
Overall Length (Decimal Inch) 7.5200
Overall Length 7.52
Through Coolant Yes
Series QR
Flute Length (Decimal Inch) 2.9400
Shank Length (Decimal Inch) 3.1600
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Flute Type Slow Spiral
Maximum Cutting Diameter (Decimal Inch) 1.4680
Number Of Flutes 2
Coolant Through Yes
