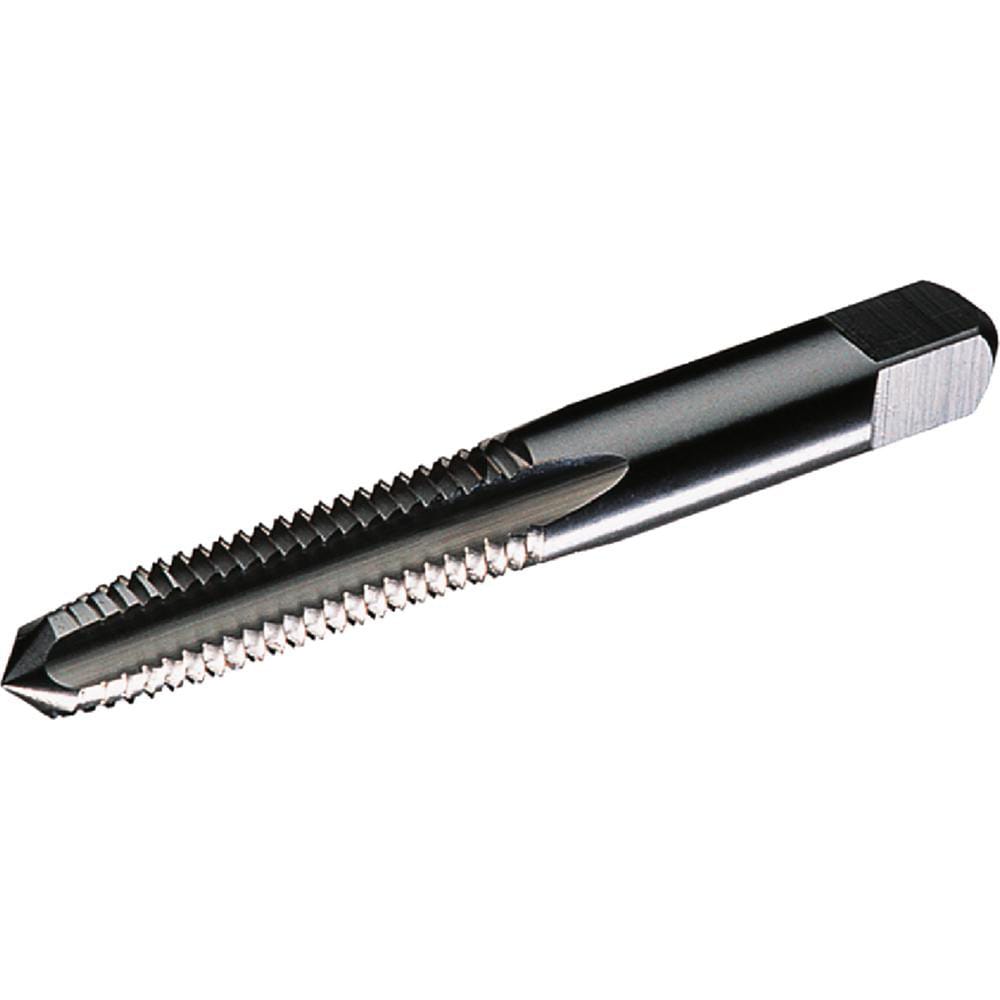

Brand: Widia / Part #: 2746693
Item #: 08723785
Brand: Widia
Model #: 2746693
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M4x0.7 |
| Thread Limit | D4 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Threads per Inch | 36 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 53.9800 |
| Thread Pitch (mm) | 0.70 |
| Thread Length (mm) | 19.05 |
| Thread Depth (mm) | 19.05 |
| Application | Metal |
| Shank Diameter (mm) | 4.2700 |
| Square Length (mm) | 6.35 |
| Series | 5353 |
| Shank Length (mm) | 0.000 |
| Shank Length (Decimal Inch) | 1.3752 |
