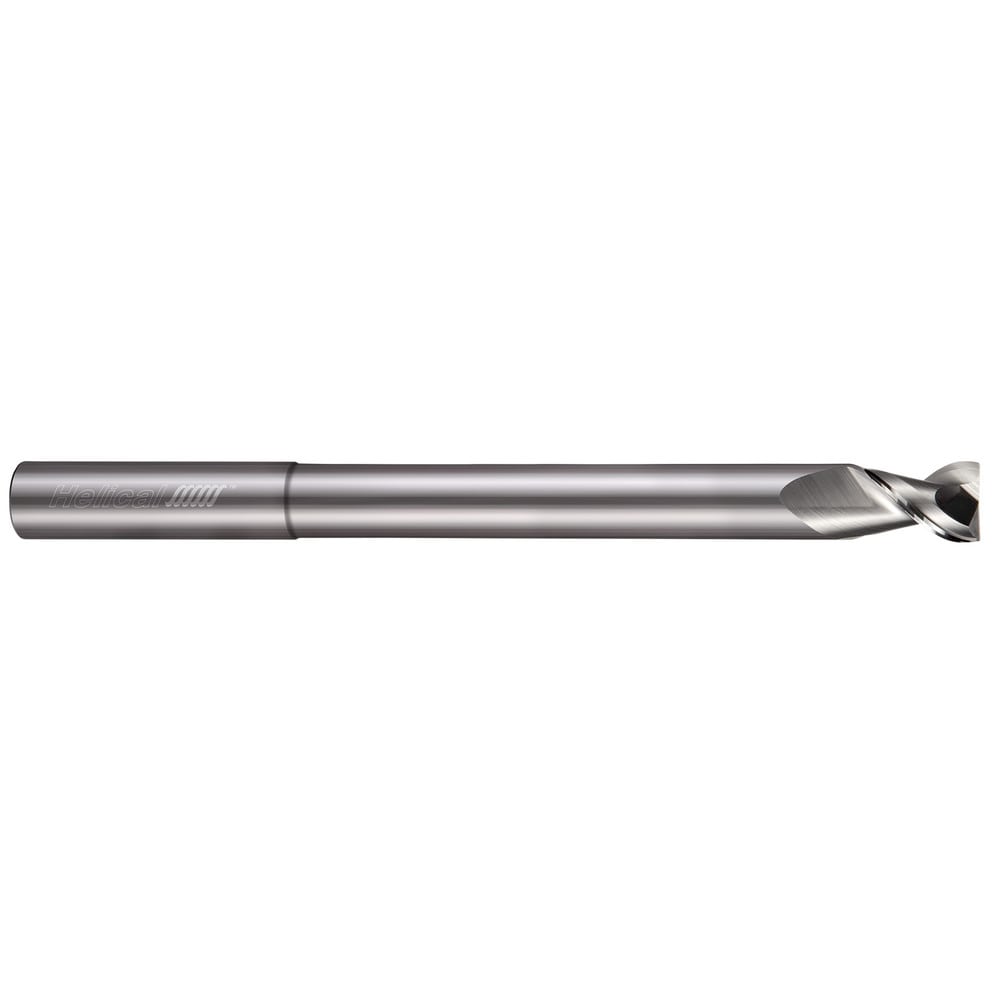

Brand: Helical Solutions / Part #: 02120
Item #: 91007237
Brand: Helical Solutions
Model #: 02120
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 3/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 4 |
| Helix Angle | 45 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.3750 |
| Material Grade | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical Flute |
| Reach Length (Inch) | 1-1/8 |
| Reach Length (Decimal Inch) | 1.1250 |
| Series | End Mills for Aluminum - 2 Flute - Square - 45? Helix - Reduced Neck |
