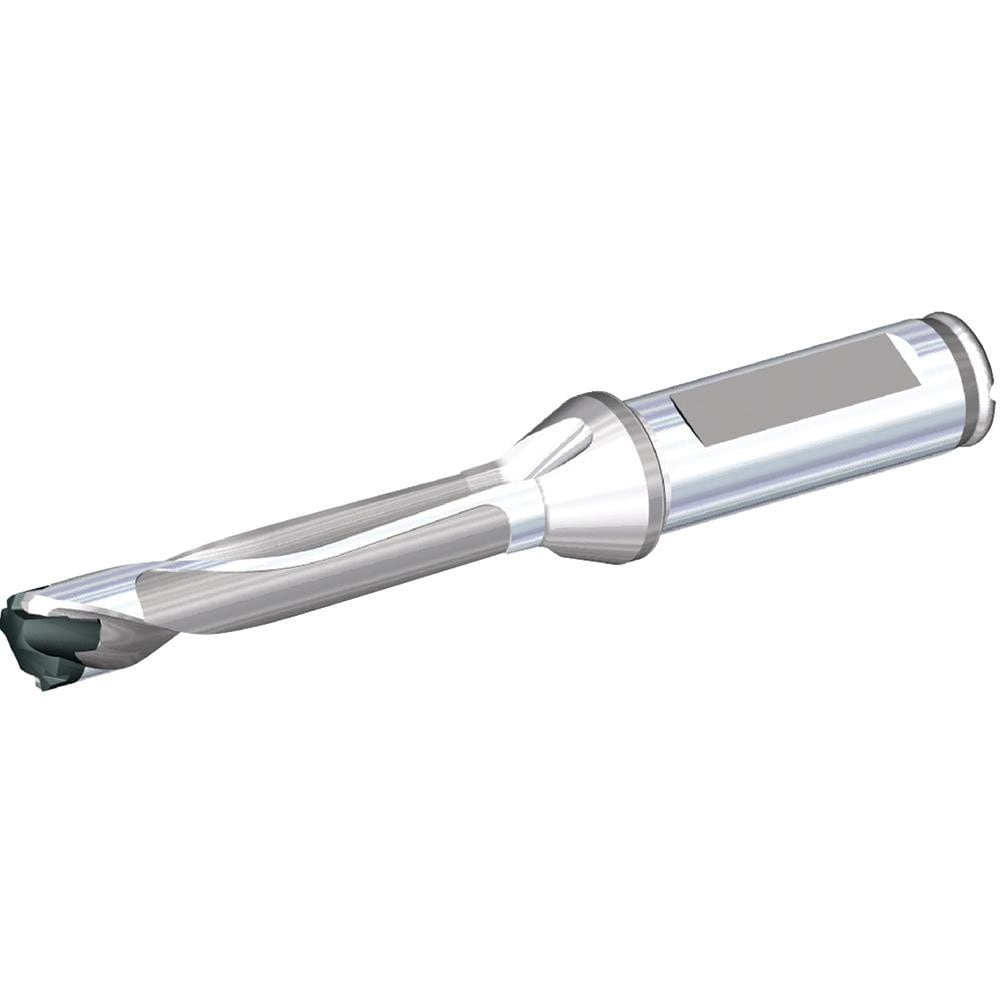

Brand: Widia / Part #: 4099045

Brand: Widia / Part #: 4099045


Item #: 90406216
Brand: Widia
Model #: 4099045

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.5709
Maximum Drill Diameter (Decimal Inch) 0.5902
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Fractional Inch) 2-61/64
Maximum Drill Depth (Decimal Inch) 2.9530
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 5/8
Shank Diameter (Decimal Inch) 0.6250
Insert Seat Size W23
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W23
Overall Length (Decimal Inch) 5.8898
Overall Length (Inch) 5-57/64
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 3.7835
Body Length (Decimal Inch) 3.7087
Shank Length (Decimal Inch) 1.8898
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.1039
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$301.55
