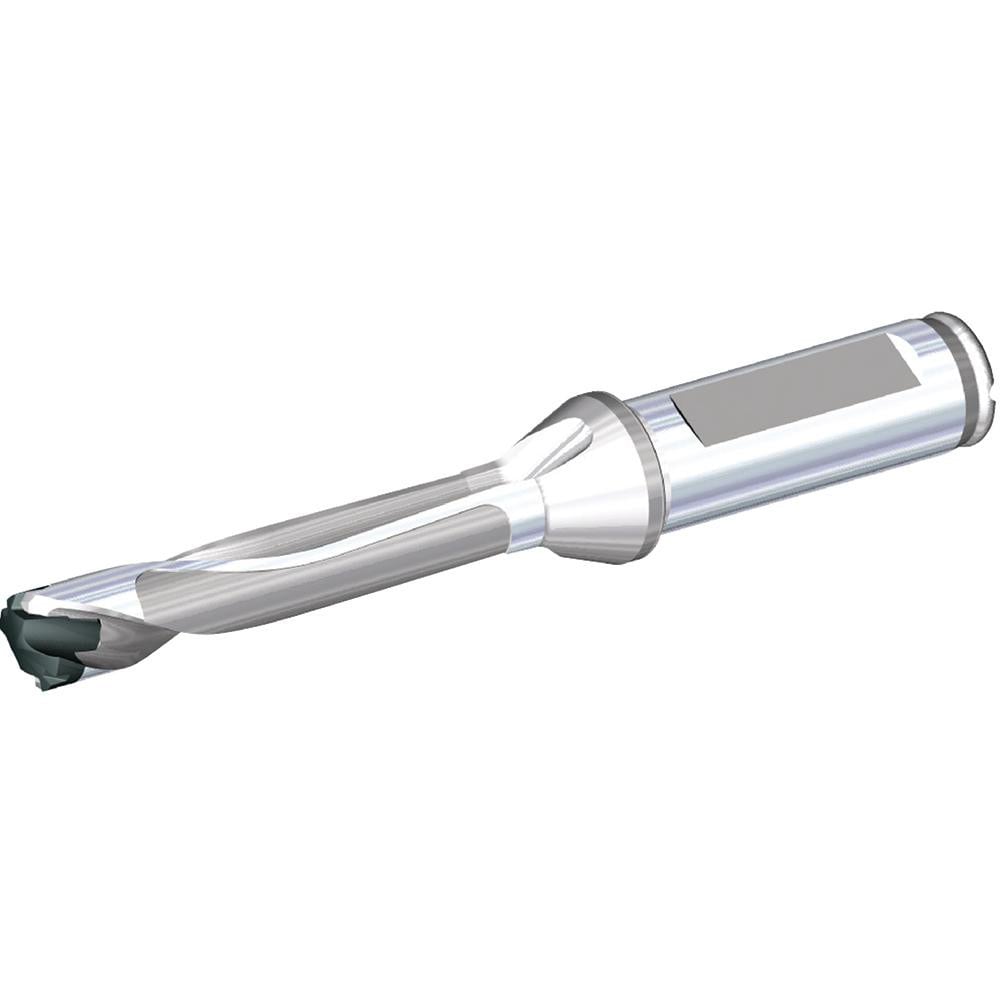

Brand: Widia / Part #: 4099046

Brand: Widia / Part #: 4099046


Item #: 18893412
Brand: Widia
Model #: 4099046

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.5906
Maximum Drill Diameter (Decimal Inch) 0.6295
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Decimal Inch) 3.1490
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 3/4
Shank Diameter (Decimal Inch) 0.7500
Insert Seat Size W24
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W24
Overall Length (Decimal Inch) 6.2185
Overall Length (Inch) 6-7/32
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 4.0335
Body Length (Decimal Inch) 3.9469
Shank Length (Decimal Inch) 1.9685
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.1067
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$301.55
