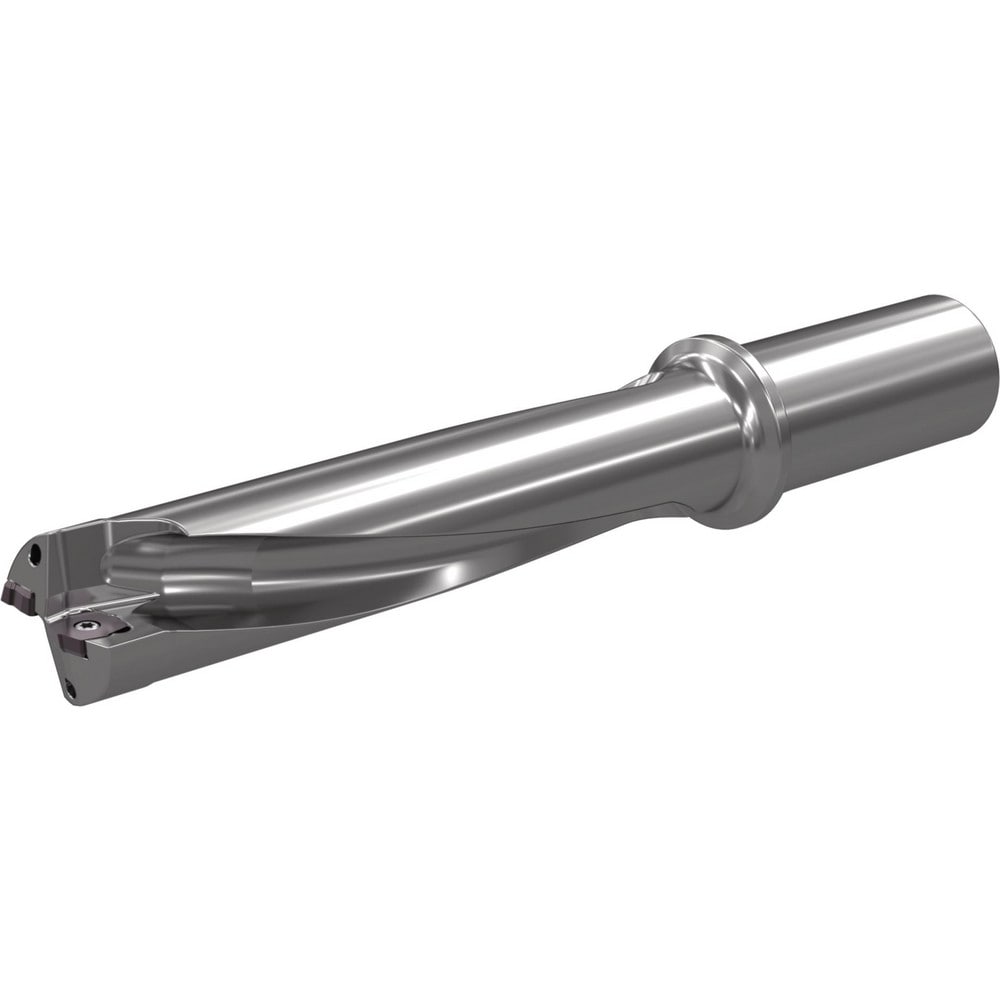

Brand: Widia / Part #: 5537951

Brand: Widia / Part #: 5537951


Item #: 97326250
Brand: Widia
Model #: 5537951

Product Specifications

Maximum Drill Depth 4.7670 in
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (mm) 121.09
Shank Type Weldon Flat
Shank Diameter (mm) 32.0000
Shank Diameter (Decimal Inch) 1.2598
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 152.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 30.00
Overall Length (mm) 213.0900
Overall Length 213.09
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 148.10
Shank Length (mm) 60.000
Gage Length (mm) 153.09
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 30.00
Projection (mm) 153.090
Number Of Flutes 2
Coolant Through Yes
$432.46
