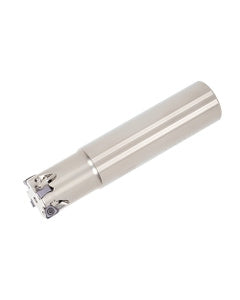

EPTN07M020C20.0R02
Item #: TG256786599
Brand: Tungaloy
Model #: 6786599
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Weight of Item (WT) | 0.22 Kg |
| Cutting Diameter (DC) | 20 mm |
| Head Length (LH) | 30 mm |
| Cutting Diameter Maximum (DCX) | 20 mm |
| Functional Length (LF) | 100 mm |
| Cutting Item Count (CICT) | 2 |
| Tool Type | CUTTER - SHANK TYPE |
| Depth of Cut Maximum (APMX) | 6.5 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 100 mm |
| Measurement Type | Metric |
| Application | | Shoulder Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Shank Length (LS) | 70 mm |
| Master Insert Identification (MIID) | TNMU070308PER-MJ |
