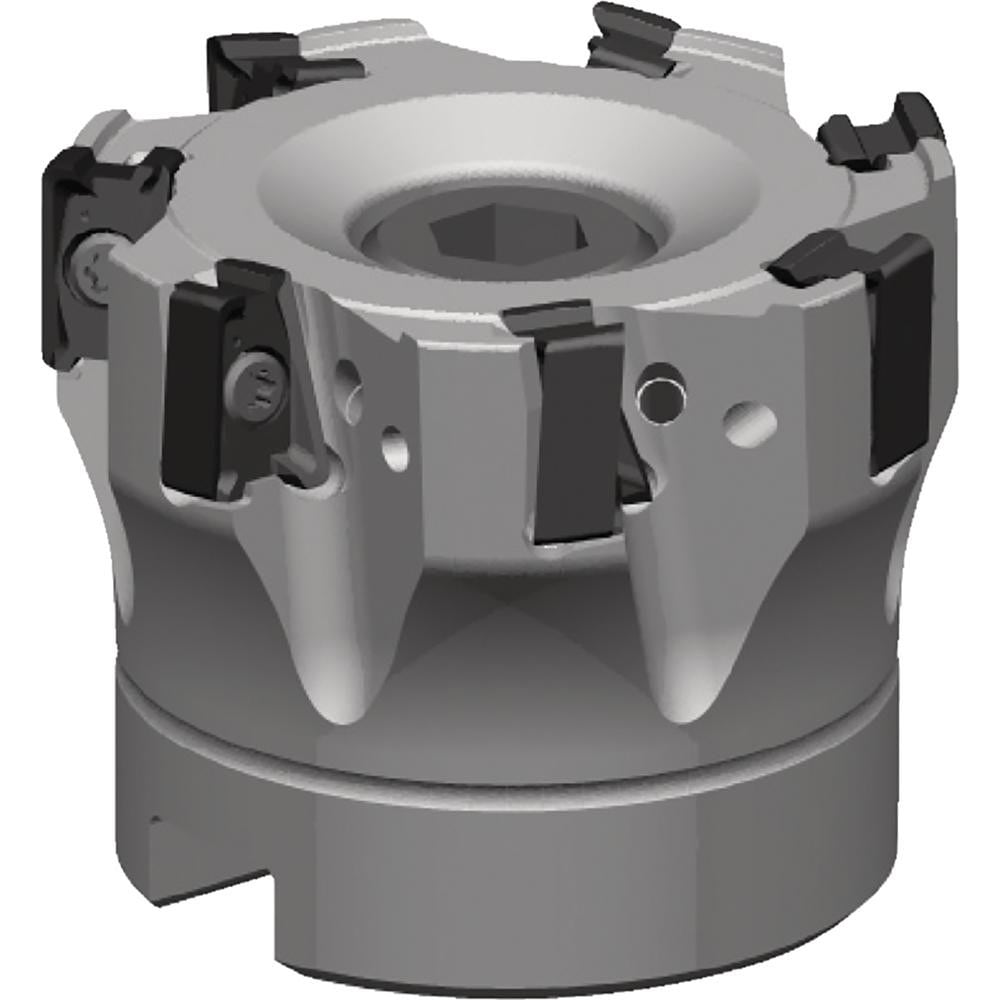

Brand: Widia / Part #: 6740684

Brand: Widia / Part #: 6740684


Item #: 09909714
Brand: Widia
Model #: 6740684

Product Specifications

Minimum Cutting Diameter (mm) 40.00
Maximum Cutting Diameter (mm) 40.00
Maximum Depth of Cut (mm) 10.00
Arbor Hole Diameter (mm) 16.00
Compatible Insert Size Code XNGU1004..
Maximum Ramping Angle 0
Cutter Style VSM
Cutting Direction Right Hand
Insert Holding Method Screw
Lead Angle 90
Rake Negative (Axial); Negative (Radial)
Rake Angle -13.300
Series VSM490
Maximum Body Diameter (mm) 38.38
Overall Height (Mm - 5 Decimals) 40.00000
Keyway Width (mm) 8.45
Hub Diameter (mm) 37.000
Maximum RPM 25400.000
Tool Application Milling; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
Number of Adjustable Pockets 0
ISO Number VSM490D040Z07S16XN10
Coolant Hole Diameter (Decimal Inch) 0.0790
Complete Insert Compatibility XNGU100408SRMM
Toolholder Material Steel
Manufacturers Catalog Number VSM490D040Z07S16XN10
Coolant Through Yes
Number Of Cutter Inserts 7
Number Of Flutes 7
$1,428.23

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
