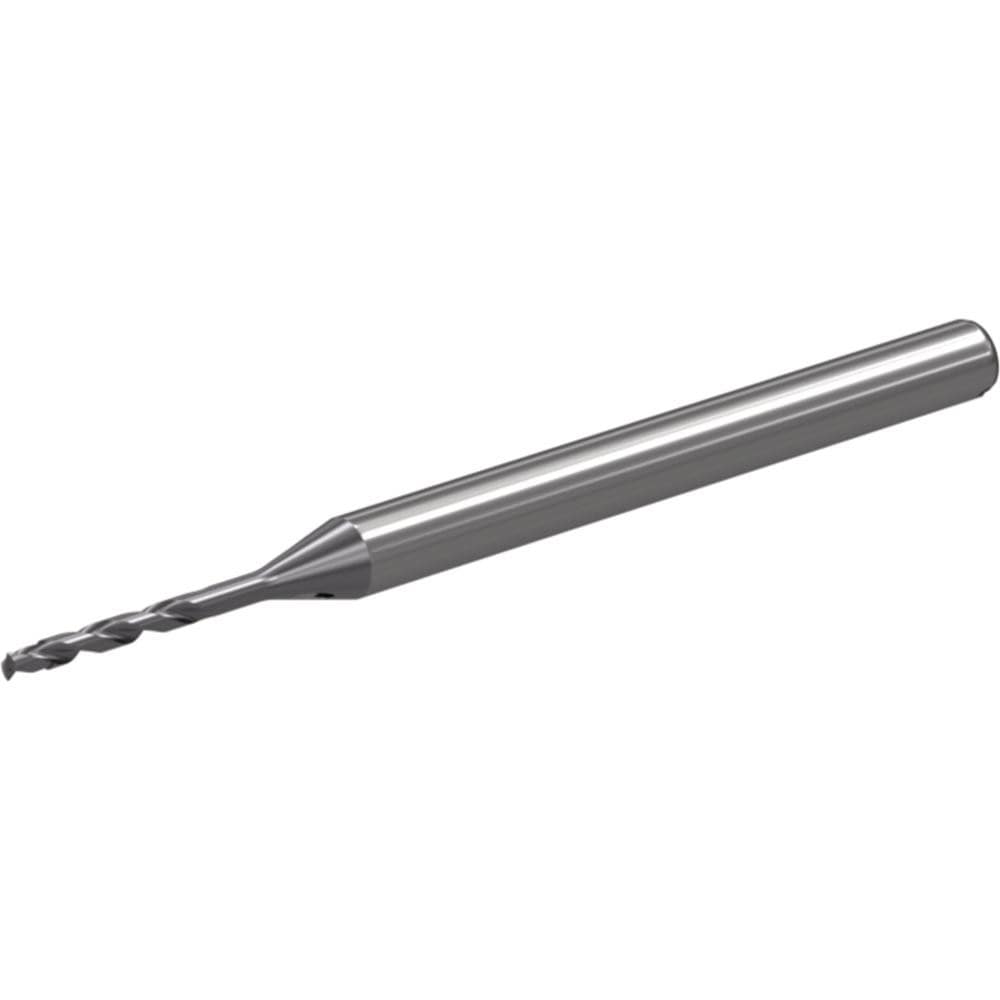

Brand: Widia / Part #: 4143540
Item #: 03492618
Brand: Widia
Model #: 4143540
Product Specifications
| Drill Bit Size (mm) | 15.70 |
| Overall Length (mm) | 197.0000 |
| Flute Length (mm) | 146.00 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | VDS403A |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | -0.000709 to 0.000000 in |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Drill Bit Grade | WU25PD |
| Drill Point Length (mm) | 2.72 |
| Shank Diameter (mm) | 16.0000 |
| Shank Length (mm) | 48.000 |
| Flute By Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 128.00 |
