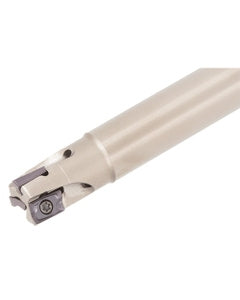

EPAV06M010C08.0R02L
Item #: TG256769884
Brand: Tungaloy
Model #: 6769884
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 10 mm |
| Master Insert Identification (MIID) | AVGT060304PBER-MJ |
| Cutting Diameter (DC) | 10 mm |
| Weight of Item (WT) | 0.04 Kg |
| Cutting Diameter Maximum (DCX) | 10 mm |
| Head Length (LH) | 20 mm |
| Cutting Item Count (CICT) | 2 |
| Functional Length (LF) | 100 mm |
| Depth of Cut Maximum (APMX) | 6 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 100 mm |
| Measurement Type | Metric |
| Shank Type | Round |
| Body Material | Steel |
| Application | | Shoulder Milling | |
| Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
