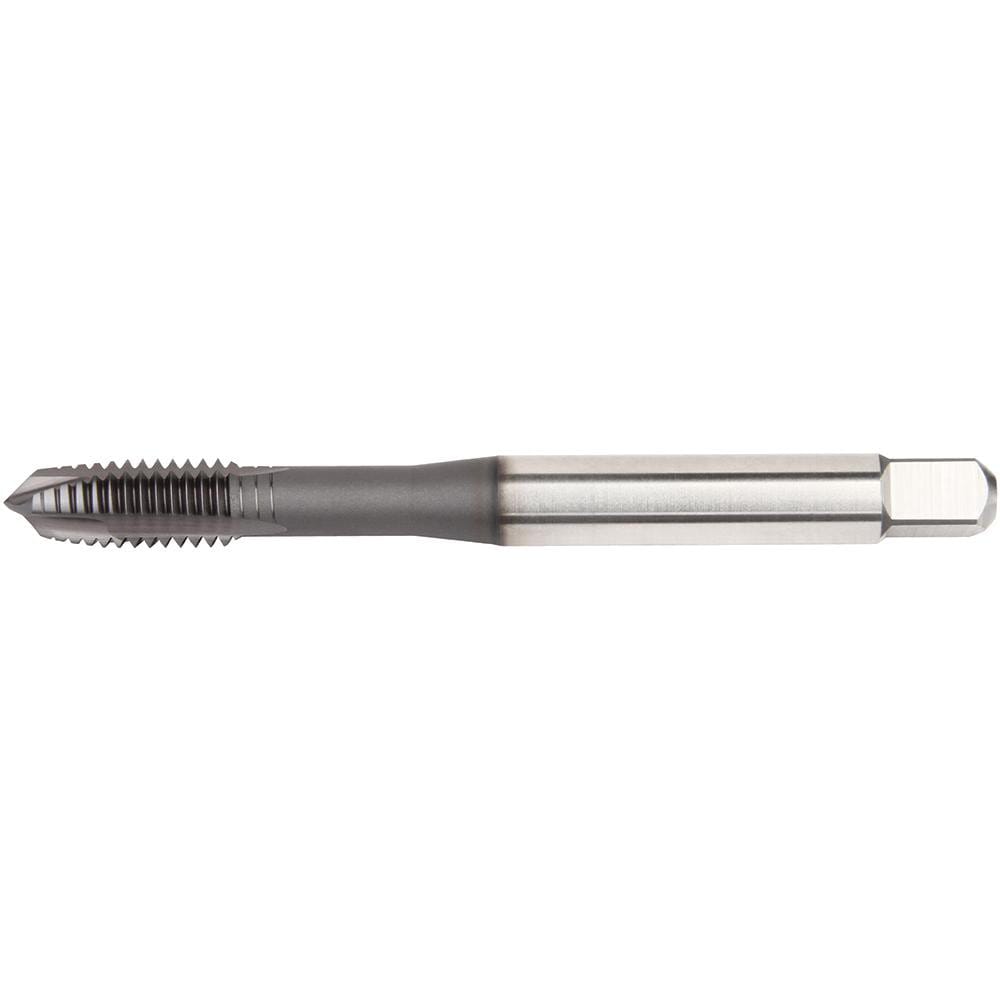

Brand: Widia / Part #: 5366598
Item #: 94011608
Brand: Widia
Model #: 5366598
Product Specifications
| Thread Size (Inch) | 1/2-13 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | 2B |
| Class Of Fit | 2B |
| Coating/Finish | TiCN |
| Threads per Inch | 13 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.8500 |
| Thread Pitch (Decimal Inch) | 0.0769 |
| Thread Standard | UNC |
| Material Grade | WP42EG |
| Thread Length (Decimal Inch) | 0.9100 |
| Overall Length (Decimal Inch) | 4.3300 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Size (Decimal Inch) | 0.2730 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
