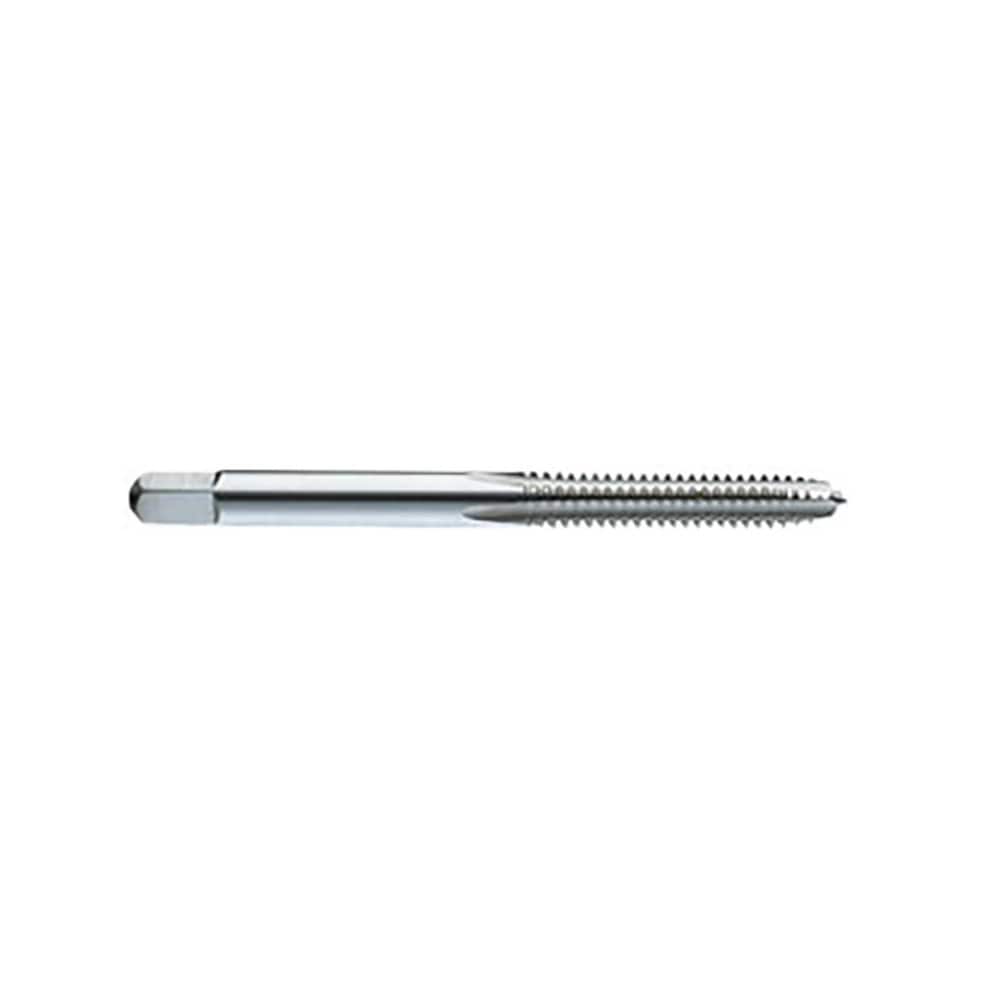

Straight Flute Tap: 1/4-20 UNC, 4 Flute, Taper Chamfer, 3B Class of Fit, HSS, Bright/Uncoated Finish
Item #: 00575050
Brand: Made in USA
Model #: 10323-00-B
Product Specifications
| Tap Type | Standard |
| Thread Size (Inch) | 1/4-20 |
| Thread Standard | UNC |
| Chamfer | Taper |
| Material | High-Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 3B |
| Thread Limit | H3 |
| Number Of Flutes | 4 |
| Oversize | No |
| Overall Length (Inch) | 2-1/2 |
| Threads per Inch | 20 |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 1 |
| Application | Blind Hole Threading; Through-Hole Threading |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Size (Decimal Inch) | 0.1910 |
| Series | 106 |
| UNSPSC Code | 23241600 |
