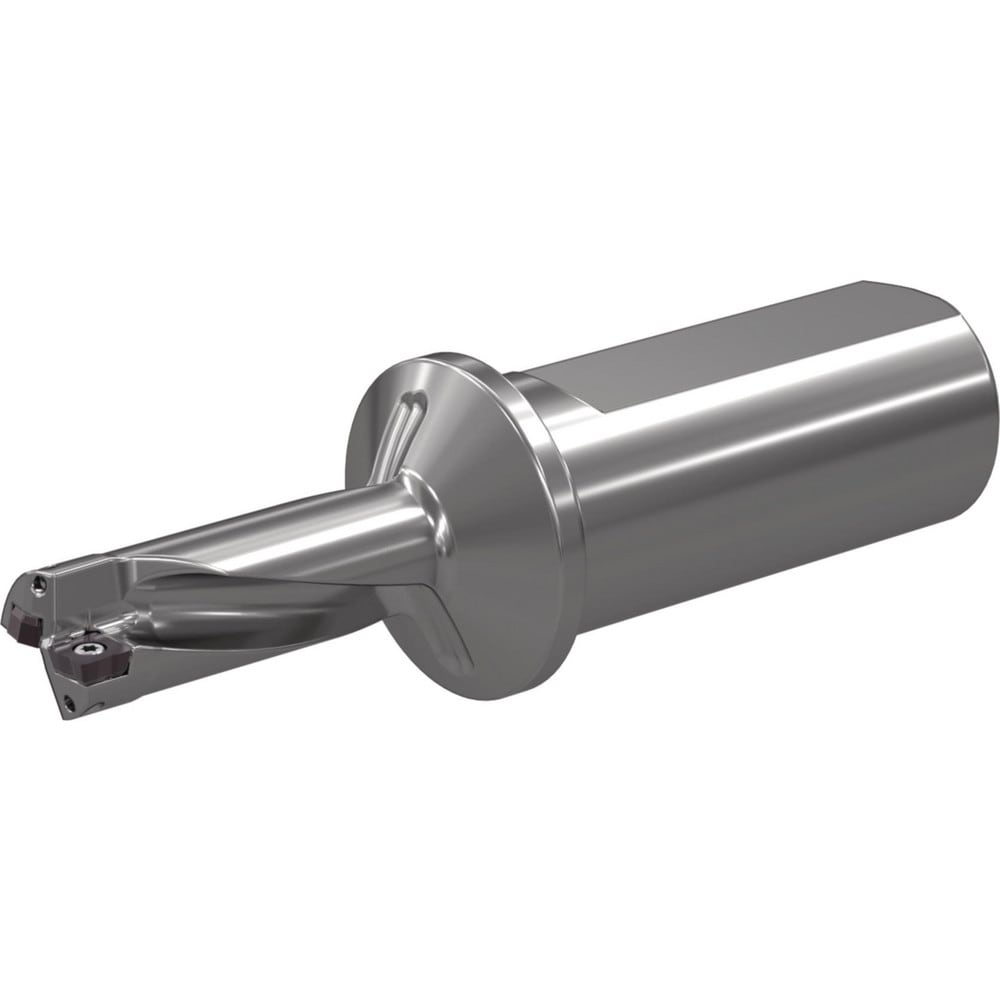

Brand: Widia / Part #: 5537778

Brand: Widia / Part #: 5537778


Item #: 97072813
Brand: Widia
Model #: 5537778

Product Specifications

Maximum Drill Depth 0.9620 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (mm) 24.43
Shank Type Weldon Flat
Shank Diameter (mm) 20.0000
Shank Diameter (Decimal Inch) 0.7874
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 43.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 12.00
Overall Length (mm) 93.4300
Overall Length 93.43
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 38.80
Shank Length (mm) 50.000
Gage Length (mm) 43.43
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 12.00
Projection (mm) 43.430
Number Of Flutes 2
Coolant Through Yes
$302.35
