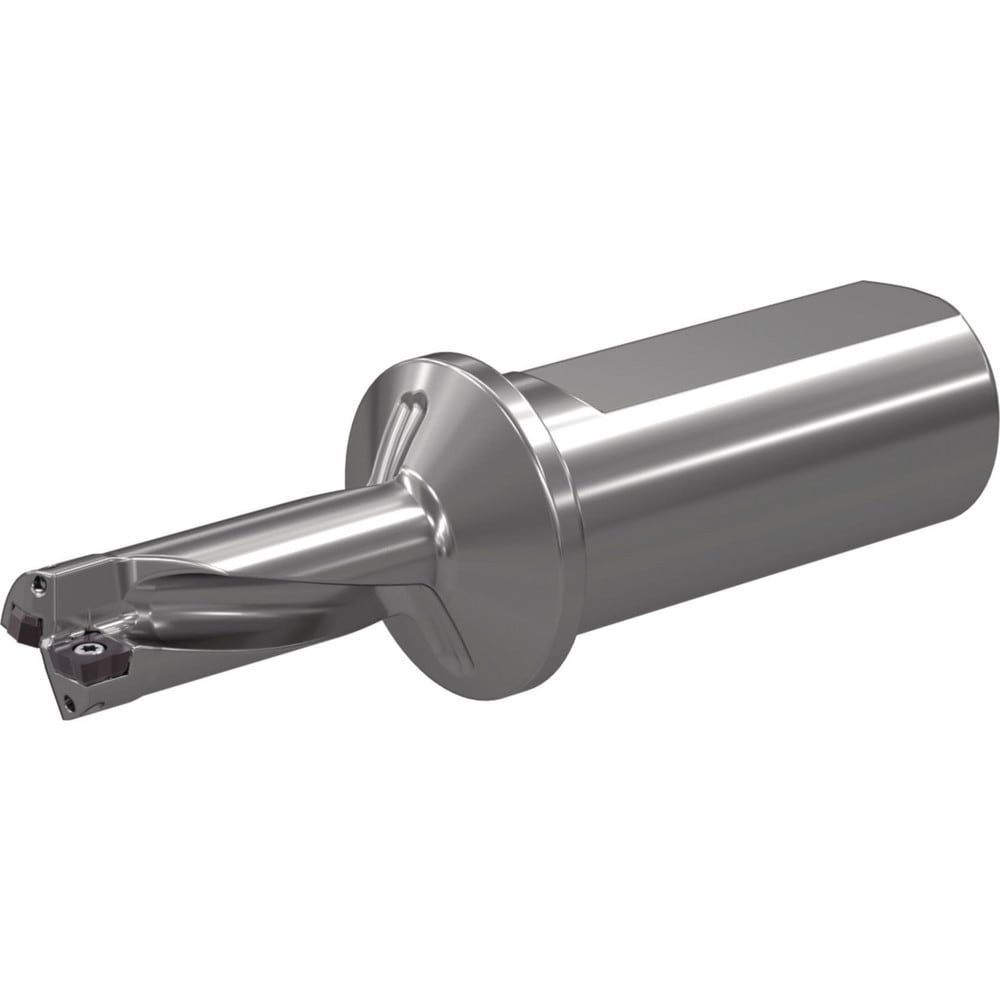

Brand: Widia / Part #: 5537779

Brand: Widia / Part #: 5537779


Item #: 97072805
Brand: Widia
Model #: 5537779

Product Specifications

Maximum Drill Depth 1.0020 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (mm) 25.45
Shank Type Weldon Flat
Shank Diameter (mm) 20.0000
Shank Diameter (Decimal Inch) 0.7874
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 44.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 12.50
Overall Length (mm) 94.4500
Overall Length 94.45
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 40.50
Shank Length (mm) 50.000
Gage Length (mm) 44.45
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 12.50
Projection (mm) 44.450
Number Of Flutes 2
Coolant Through Yes
$302.35
