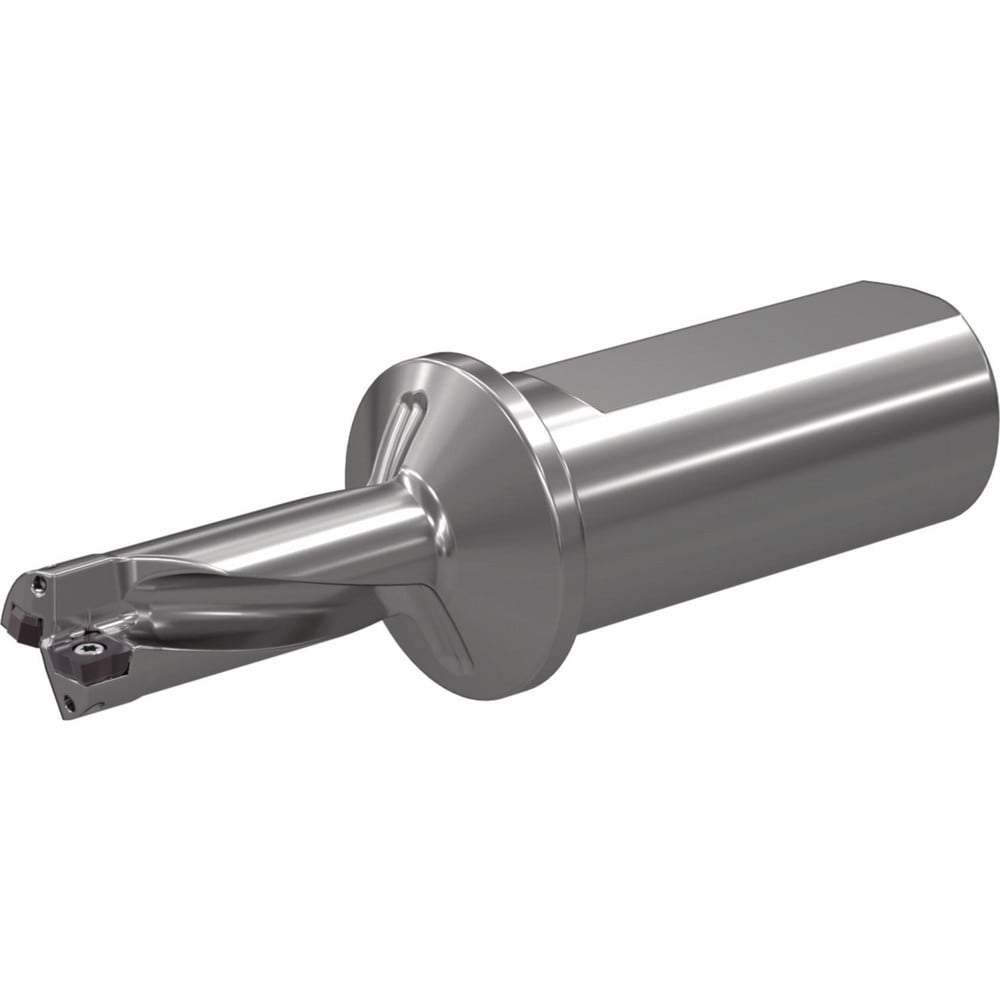

Brand: Widia / Part #: 5537881

Brand: Widia / Part #: 5537881


Item #: 90981069
Brand: Widia
Model #: 5537881

Product Specifications

Maximum Drill Depth 1.0810 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (Decimal Inch) 1.0810
Shank Type Weldon Flat
Shank Diameter (Inch) 3/4
Shank Diameter (Decimal Inch) 0.7500
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 1.8570
Toolholder Style TCF
Nose Diameter (Decimal Inch - 4 Decimals) 0.5310
Overall Length (Decimal Inch) 3.8444
Overall Length 3.84
Through Coolant Yes
Series Top Cut 4
Flute Length (Decimal Inch) 1.7180
Shank Length (Decimal Inch) 1.9685
Gage Length (Decimal Inch) 1.8759
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Coolant Hole Thread Type NPT
Coolant Hole Thread Size (Inch) 1/8-27
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (Decimal Inch) 0.5310
Number Of Flutes 2
Projection (Decimal Inch) 1.8759
Coolant Through Yes
$302.35
