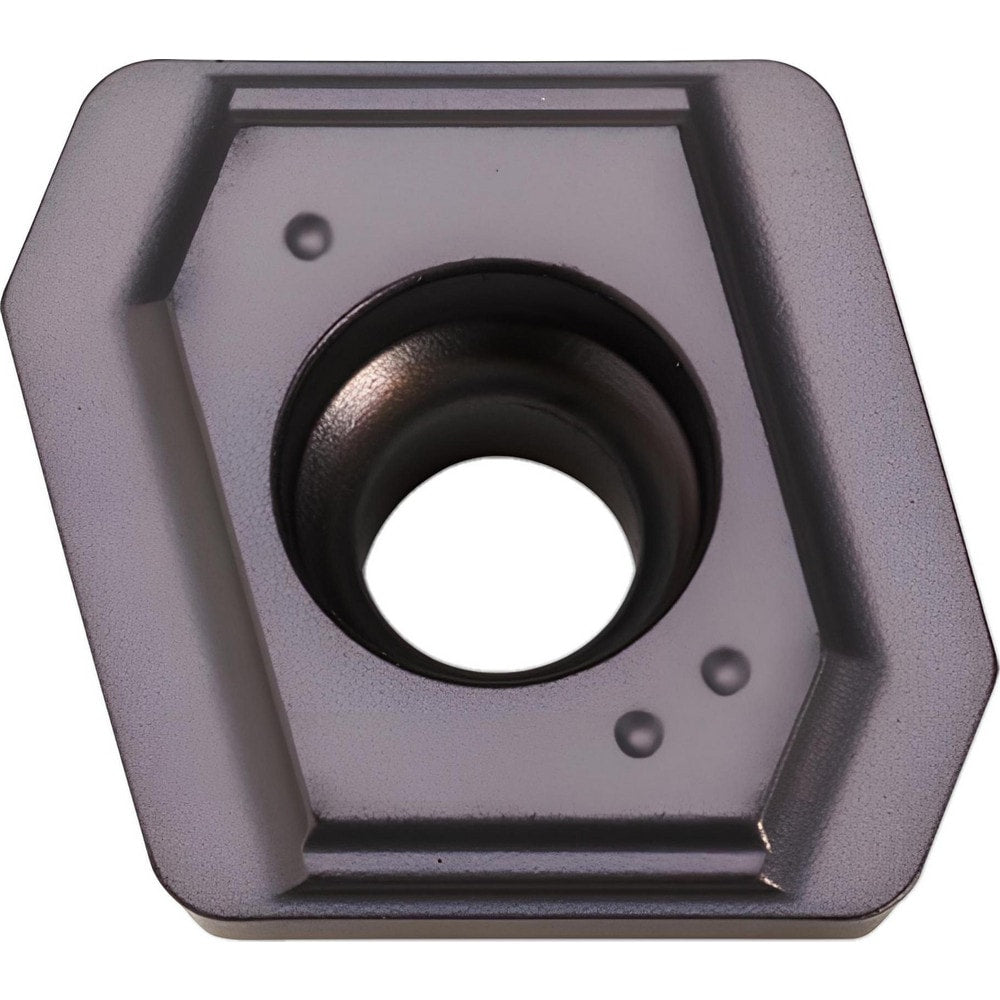

Brand: Ingersoll Cutting Tools / Part #: 4828573
Item #: 99516577
Brand: Ingersoll Cutting Tools
Model #: 4828573
Product Specifications
| Insert Style | NPMX |
| Insert Size Code | 080308 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2005 |
| Thickness (Inch) | 1/8 |
| Cutting Direction | Right Hand |
| Corner Radius (Inch) | 1/32 |
| Chipbreaker | G |
| Series | NPMX |
| Coating Process | PVD |
| Shape | Parallelogram |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Manufacturers Catalog Number | NPMX080308R-G IN2005 |
| Drill Style | TBTA |
| Insert Size | 08 |
| Coating Classification | PVD |
| Length (Mm) | 8.00 |
| Width (Decimal Inch - 4 Decimals) | 0.3290 |
| Length (Decimal Inch - 4 Decimals) | 0.3150 |
| Included Angle Degree | 75 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Coating/Finish | TiAlN |
