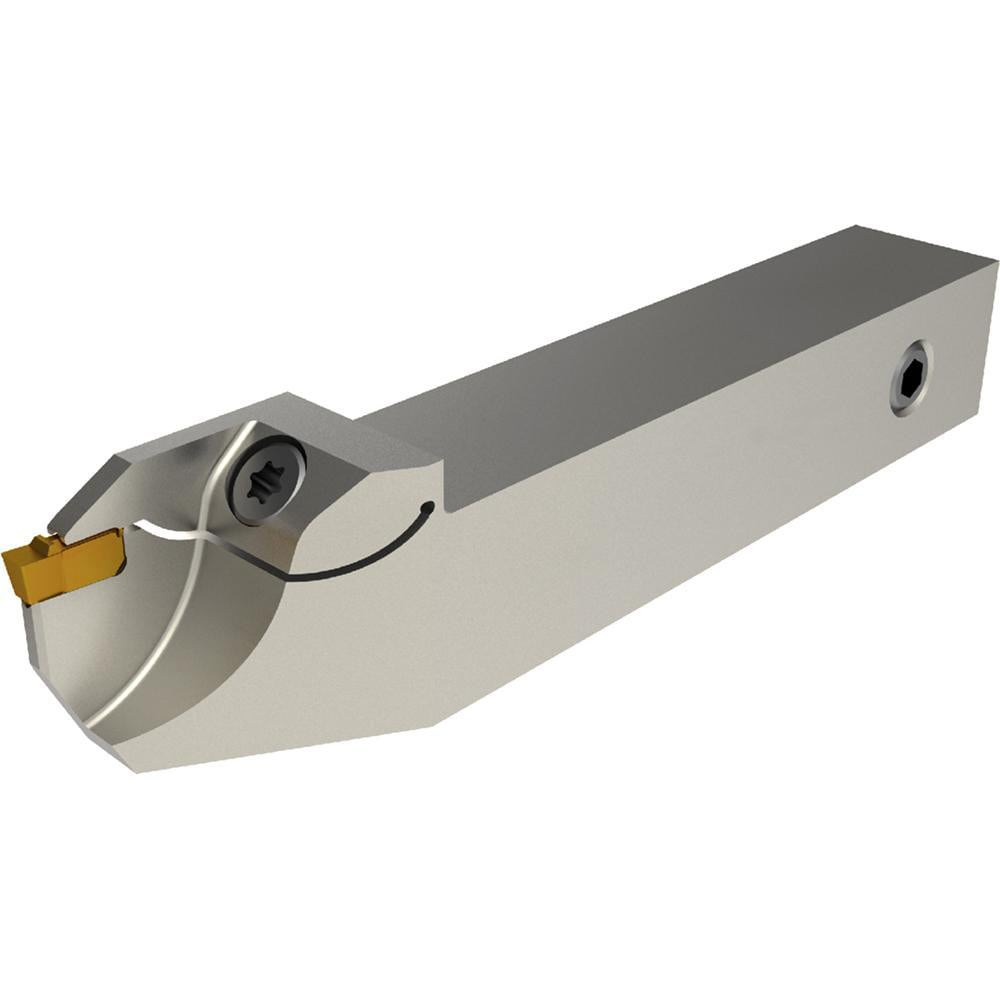

Brand: Widia / Part #: 6766070

Brand: Widia / Part #: 6766070


Item #: 98285661
Brand: Widia
Model #: 6766070

Product Specifications

Internal or External External
Maximum Depth of Cut (mm) 16.00
Hand of Holder Left Hand
Maximum Groove Width (mm) 3.00
Minimum Groove Width (mm) 3.00
Toolholder Style WGCSC
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0300
Insert Compatibility WG0300M03P02
Shank Height (mm) 20.00
Shank Length (mm) 97.500
Shank Width/Diameter (mm) 20.00
Series WGCSCF
Overall Length (mm) 125.0000
Cutting Tool Application Grooving; Facing; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 0.7874
Head Height (mm) 24.750
Head Length (mm) 27.50
Primary Workpiece Material Universal
Insert Seat Size 3.0
Coolant Through Yes
$143.87
