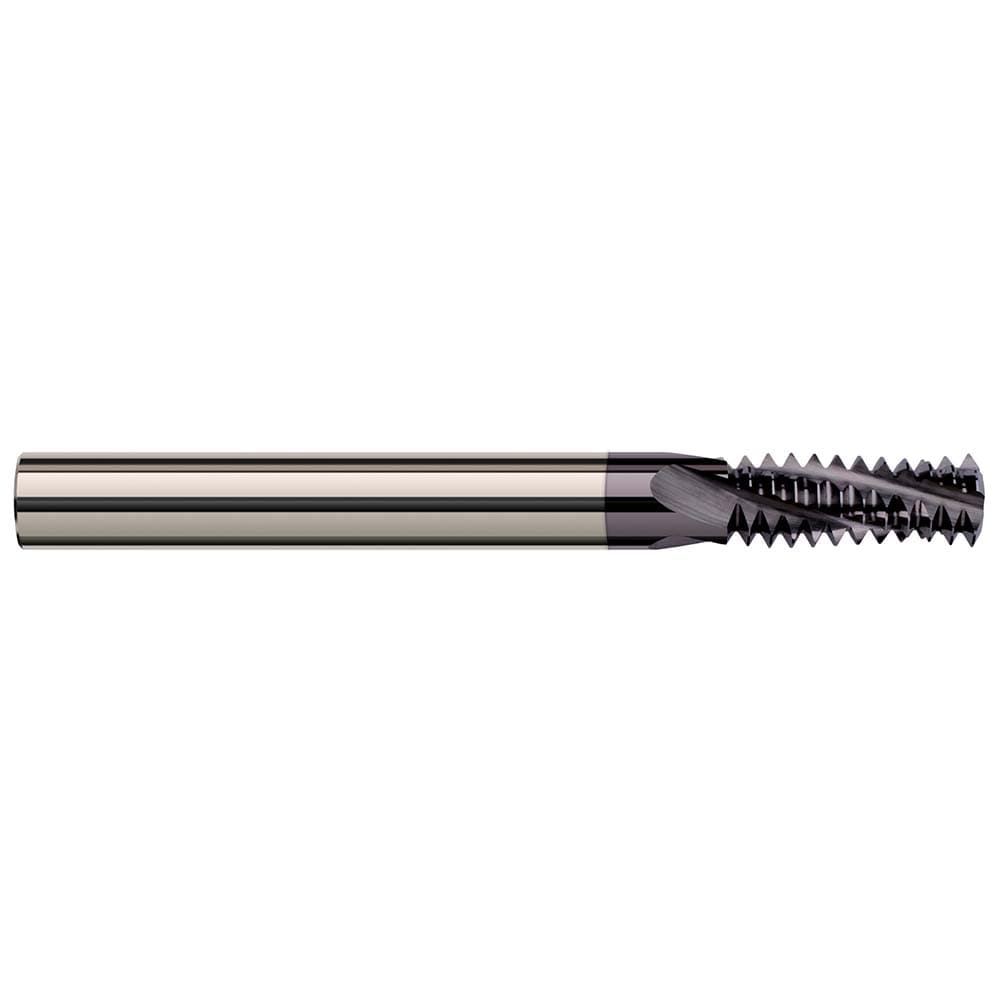

Brand: Harvey Tool / Part #: 16919-C3
Item #: 96001169
Brand: Harvey Tool
Model #: 16919-C3
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M6x0.75 |
| Thread Depth | 0.3660000000 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Cutting Diameter (Decimal Inch) | 0.1700 |
| Minimum Nominal Diameter (mm) | 6 |
| Shank Length (Decimal Inch) | 2.1340 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Series | Thread Milling Cutters - Multi-Form - Metric |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3660 |
| Thread Length (Decimal Inch) | 0.3660 |
