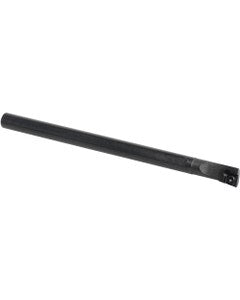

S05KSCLCL2 Left-Hand, Positive Rake, Boring Bar
Item #: KY96THC89264
Brand: Kyocera Precision Tools
Model #: THC89264
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.3118″ |
| Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 5″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Overall Length (OAL) | 5″ |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Head Length (LH) | 0.6252″ |
| Series/List # | GPBB |
| Shank Length (LS) | 4.3748″ |
| Body Material | Steel |
| Functional Width (WF) | 0.1969″ |
| Style | S...SCLC |
| Master Insert Identification (MIID) | | CCGT215 | CCMT215 | CCET215 | CCGW215 | CCMW215 | |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.3937″ |
| Weight of Item (WT) | 0.2 |
| Cutting Direction (HAND) | Left Hand |
