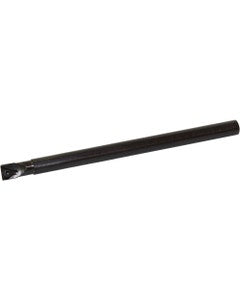

S06MSTUPR18 Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC89311
Brand: Kyocera Precision Tools
Model #: THC89311
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.3752″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 6″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 6″ |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 1.0098″ |
| Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Height (H) | 0.3559″ |
| Series/List # | GPBB |
| Shank Length (LS) | 4.9902″ |
| Body Material | Steel |
| Functional Width (WF) | 0.236″ |
| Style | S...STUP |
| Master Insert Identification (MIID) | | TPGT1815 | TPMT1815 | TPMX1815 | TPEH1815 | TPGH1815 | TPGB1815 | TPMH1815 | |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.4724″ |
| Weight of Item (WT) | 0.25 |
