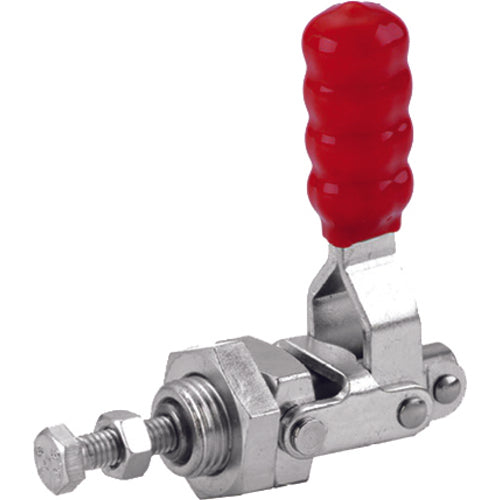

200 lbs 1/4-20 Thread Body Straight Line Clamp
Item #: RH10R141
Brand: Rapidhold
Model #: RH10R141
| Product Specifications | |
|---|---|
| Style | Push/Pull Toggle Clamp |
| Bar Style | Straight Line |
| Type | Toggle Clamp |
| Mounting Diameter | 0.2000″ |
| Arm | 1.73″ |
| Mounting Length | .41″ |
| Height Under Clamp Arm | .47″ |
| Mounting Width | .71″ |
| Holding Capacity | 200 lbs |
| Spindle Size | 1/4″ × 1 9/16″ |
| Overall Height | 2.96″ |
| Base Length | 1.18″ |
| Overall Length | 2.53″ |
| Plunger Diameter | .37″ |
| Model No | R141 |
| Bar Type | Through Hole Mount |
