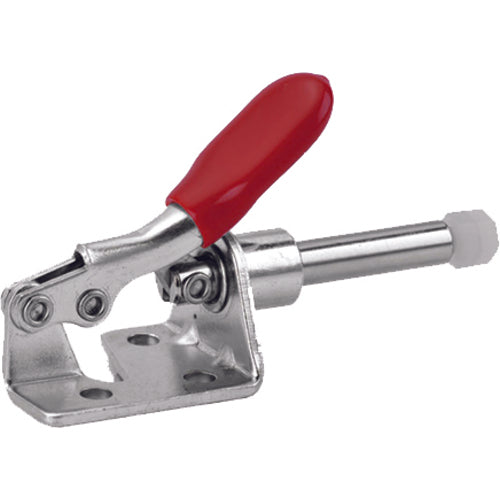

100 lbs 8-32 Flanged Base Straight Line Clamp
Item #: RH10R140
Brand: Rapidhold
Model #: RH10R140
| Product Specifications | |
|---|---|
| Style | Push/Pull Toggle Clamp |
| Bar Style | Straight Line |
| Type | Toggle Clamp |
| Mounting Diameter | 0.1700″ |
| Arm | 1.06″ |
| Mounting Length | .63″ |
| Height Under Clamp Arm | .50″ |
| Mounting Width | .63″ |
| Holding Capacity | 100 lbs |
| Spindle Size | 8-32 × 1/2″ |
| Overall Height | 1.61″ |
| Base Length | 1.31″ |
| Overall Length | 2.68″ |
| Plunger Diameter | .25″ |
| Model No | R140 |
| Bar Type | Flanged |
