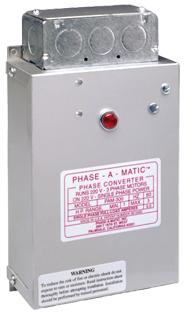

Heavy Duty Static Phase Converter - #PAM-900HD; 4 to 8HP

Item #: RD30PAM900HD
Manufacturer: Phase-A-Matic
Mfg #: PAM-900HD

Technical Specifications:
•Brand Name: Phase-A-Matic •Horse Power: 4 to 8 •Model Number: PAM-900HD •Type: Heavy Duty Static Phase Converter •Weight: 4 lbs

Description:
•How To Size: The largest motor on your machine must fall within the minimum and maximum range of the converter •Do not order a larger unit or Heavy Duty model thinking it will give more horsepower •When To Use Heavy Duty: •Heavy starting loads (lathes, flywheel driven equipment,etc.) •Instant reversing, frequent starting, jogging •Air compressors (motor pulley must be reduced by 1/3 in diameter) Heavily Loaded Equipment:•For pumps, fans, blowers, direct-drive compressors, or equipment requiring greater than 2/3 of its rated HP, you must USE A PHASE-A-MATIC™ ROTARY CONVERTER.

Shipping Info:
•Actual Weight - 3.7500 •Dimensions - Height: 3.80 Length: 10.9 Width: 6.10
