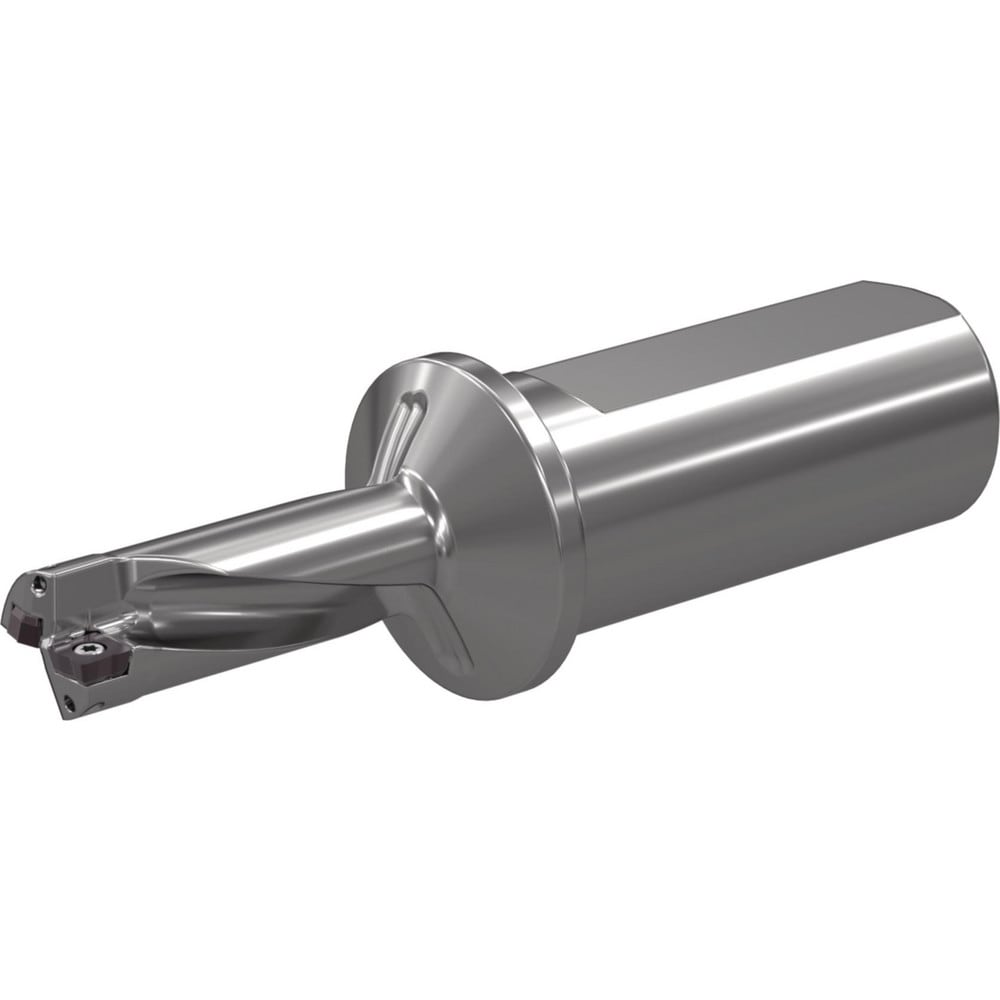

Brand: Widia / Part #: 5578226

Brand: Widia / Part #: 5578226


Item #: 97074611
Brand: Widia
Model #: 5578226

Product Specifications

Maximum Drill Depth 1.1460 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (Decimal Inch) 1.1460
Shank Type Weldon Flat
Shank Diameter (Inch) 3/4
Shank Diameter (Decimal Inch) 0.7500
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 1.9030
Toolholder Style TCF
Nose Diameter (Decimal Inch - 4 Decimals) 0.5630
Overall Length (Decimal Inch) 3.8915
Overall Length 3.89
Through Coolant Yes
Series Top Cut 4
Flute Length (Decimal Inch) 1.7650
Shank Length (Decimal Inch) 1.9685
Gage Length (Decimal Inch) 1.9230
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Coolant Hole Thread Type NPT
Coolant Hole Thread Size (Inch) 1/8-27
Number of Shank Flats 1
Flute Type Helical Flute
Maximum Cutting Diameter (Decimal Inch) 0.5630
Number Of Flutes 2
Projection (Decimal Inch) 1.9230
Coolant Through Yes
$305.28
