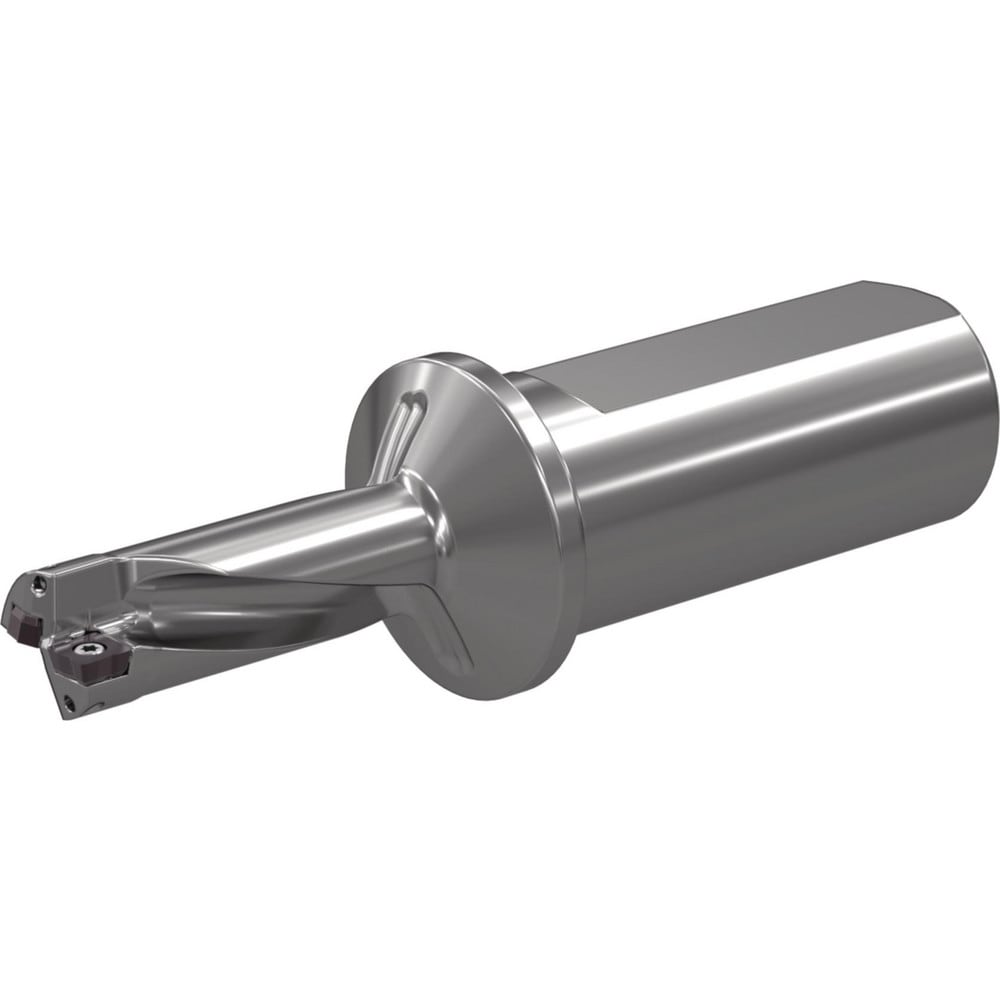

Brand: Widia / Part #: 5578228

Brand: Widia / Part #: 5578228


Item #: 10113462
Brand: Widia
Model #: 5578228

Product Specifications

Maximum Drill Depth 1.2730 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (Decimal Inch) 1.2730
Shank Type Weldon Flat
Shank Diameter (Inch) 3/4
Shank Diameter (Decimal Inch) 0.7500
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 2.0950
Toolholder Style TCF
Nose Diameter (Decimal Inch - 4 Decimals) 0.6250
Overall Length (Decimal Inch) 4.0861
Overall Length 4.09
Through Coolant Yes
Series Top Cut 4
Flute Length (Decimal Inch) 1.9600
Shank Length (Decimal Inch) 1.9685
Gage Length (Decimal Inch) 2.1176
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Coolant Hole Thread Type NPT
Coolant Hole Thread Size (Inch) 1/8-27
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (Decimal Inch) 0.6250
Number Of Flutes 2
Projection (Decimal Inch) 2.1176
Coolant Through Yes
$305.28
