Brand: Widia / Part #: 5696714

Brand: Widia / Part #: 5696714


Item #: 98375702
Brand: Widia
Model #: 5696714

Product Specifications

Cutting Direction Right Hand
Hand of Holder Right Hand
Compatible Insert Size Code 1204..

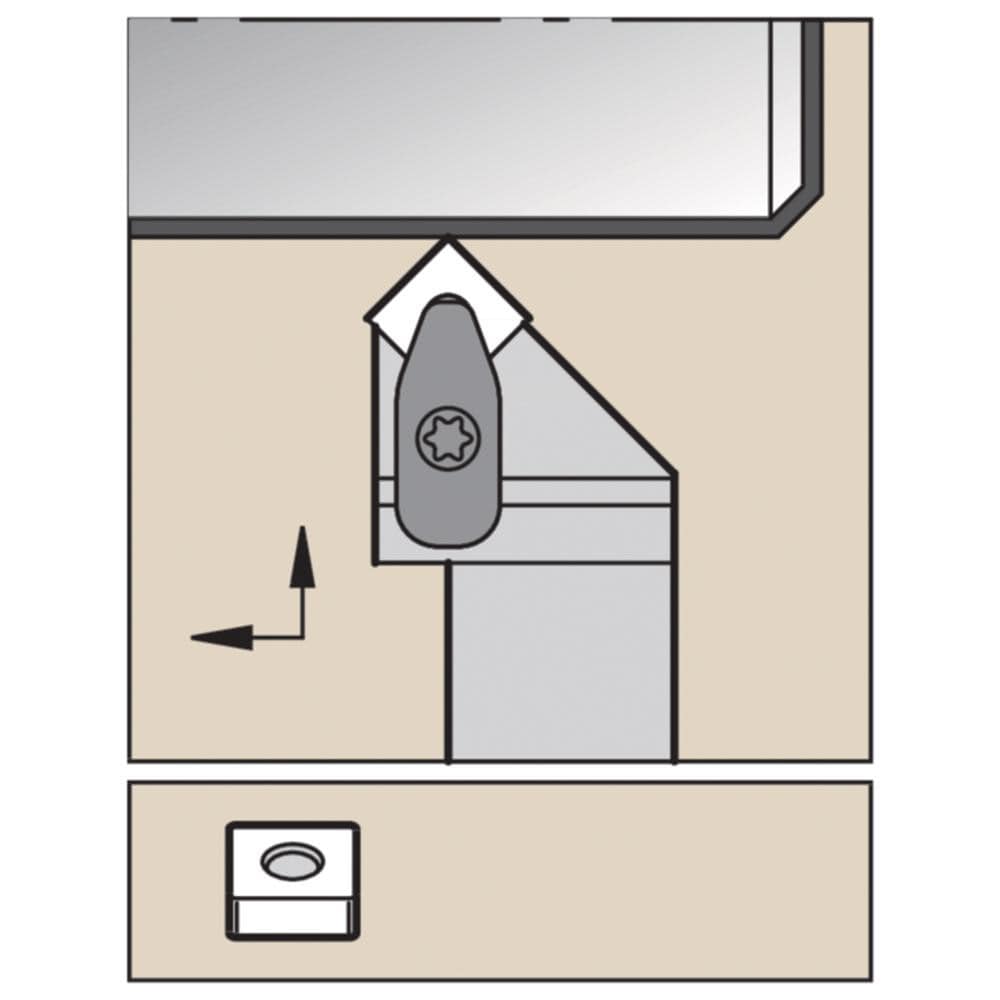

Toolholder Style DSSNR
Rake Negative
Rake Angle -8 (Radial);0 (Axial)
Multi-use Tool Yes
Lead Angle 45.000
Insert Holding Method Clamp
Insert Compatibility SN..1204..
Shank Width (mm) 25.00
Shank Height (mm) 25.03
Series DSSN
Overall Length (mm) 159.5800
Cutting Tool Application Facing; Copying; Turning
Head Length (mm) 35.99
Back of Bar to Cutting Edge (mm) 32.00
Primary Workpiece Material Universal
Insert Width (mm) 12.70
Toolholder Material Steel
ISO Number DSSNR2525M12KC04
Complete Insert Compatibility SN..
Insert Thickness 4.76
Coolant Through No
Insert Inscribed Circle (mm) 12.70
$86.75
