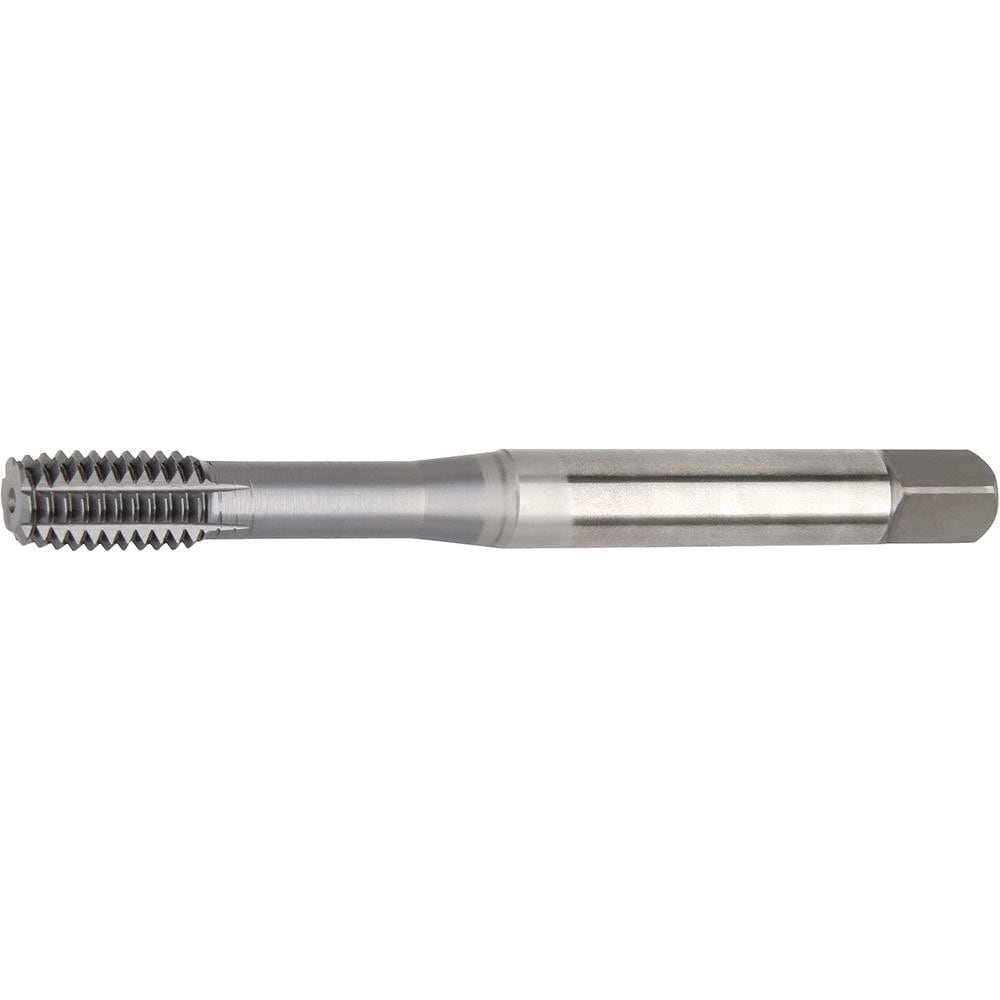

Brand: Widia / Part #: 5945176
Item #: 98977432
Brand: Widia
Model #: 5945176
Product Specifications
| Thread Size (Inch) | 7/16-20 |
| Overall Length (Decimal Inch) | 3.9400 |
| Chamfer | Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | H5 |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.7100 |
| Thread Depth | 1.6100 |
| Thread Depth (Decimal Inch) | 1.6100 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Neck Length (Decimal Inch) | 0.9000 |
| Square Length (Decimal Inch) | 0.4100 |
| Material Application | Stainless Steel |
| Application | Metal |
| Series | GT27 |
| Tap Type | Blind |
| Tapping Depth (Decimal Inch) | 1.6100 |
| Shank Length (Decimal Inch) | 2.3300 |
| Square Size (Decimal Inch) | 0.2400 |
| Threads per Inch | 20 |
| Class Of Fit | 2B |
| Coolant Through | Yes |
