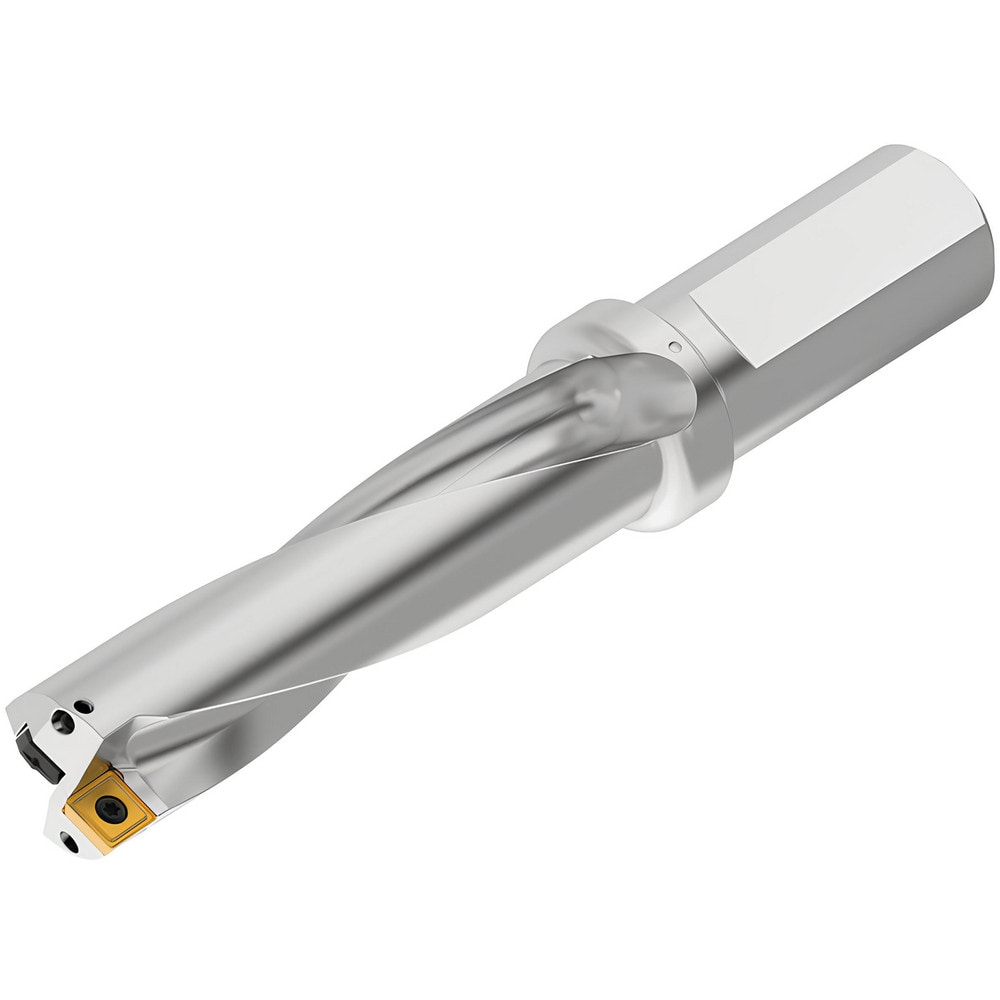

Indexable Insert Drill: DFPR1000R4WB100, 1.0390" Max Dia, 4.0000" Max Depth, 4xD, 1.0000" Shank Dia
Item #: 02736338
Brand: Kennametal
Model #: 7034228
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (Decimal Inch) | 1.0390 |
| Maximum Drill Depth (Inch) | 4 |
| Maximum Drill Depth (Decimal Inch) | 4.0000 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 090305; 100305 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.8730 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 4.0000 |
| Body Length (Decimal Inch) | 4.6690 |
| Shank Length (Decimal Inch) | 2.2040 |
| Shank Length (mm) | 56.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3700x0.1180; 0.3900x0.1180 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR090305__O; DFPR100305__I |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M3-0.5x8T9 |
| Coolant Through | Yes |
