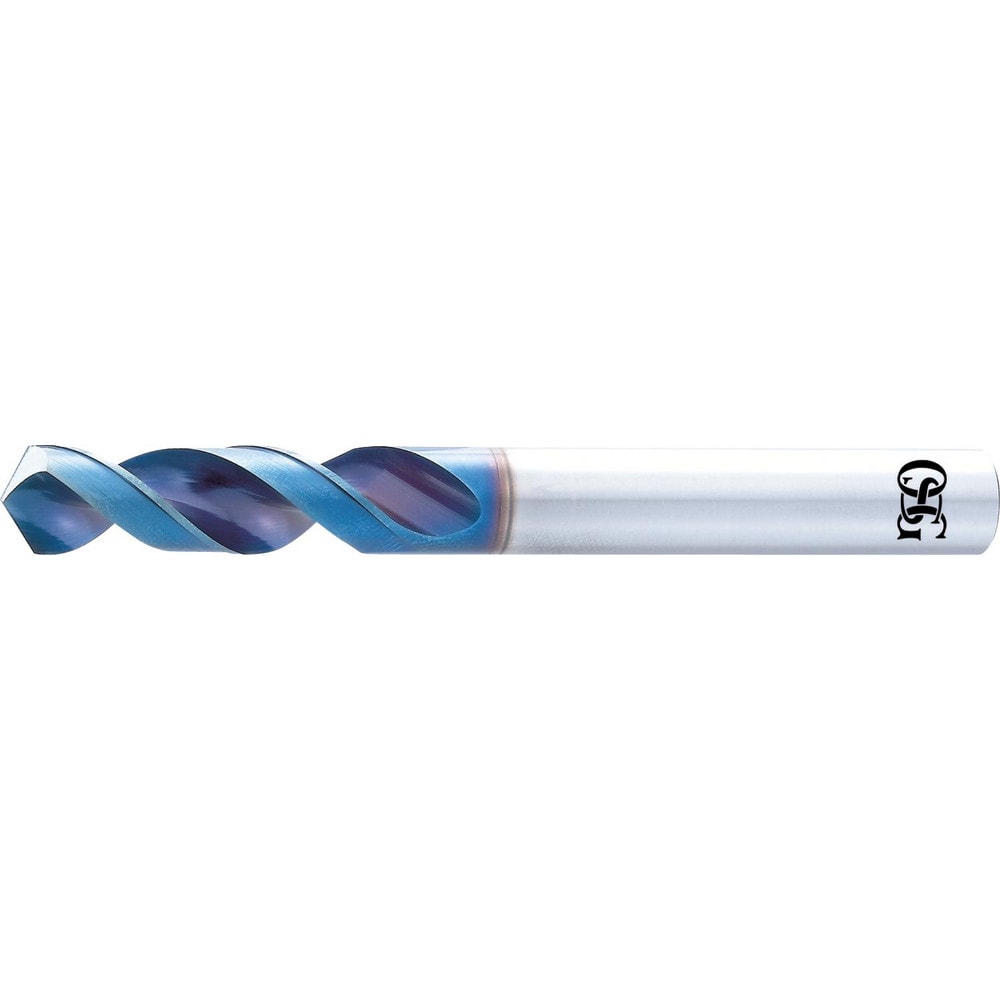

Brand: OSG / Part #: 8650430
Item #: 50975598
Brand: OSG
Model #: 8650430
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1693 |
| Drill Bit Size (mm) | 4.30 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 120 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 68.00 |
| Overall Length (Decimal Inch) | 2.6772 |
| Shank Diameter (mm) | 6.00 |
| Series | 1150 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Point Type | Web-Thinned |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.018 mm |
| Flute Length (mm) | 24.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
