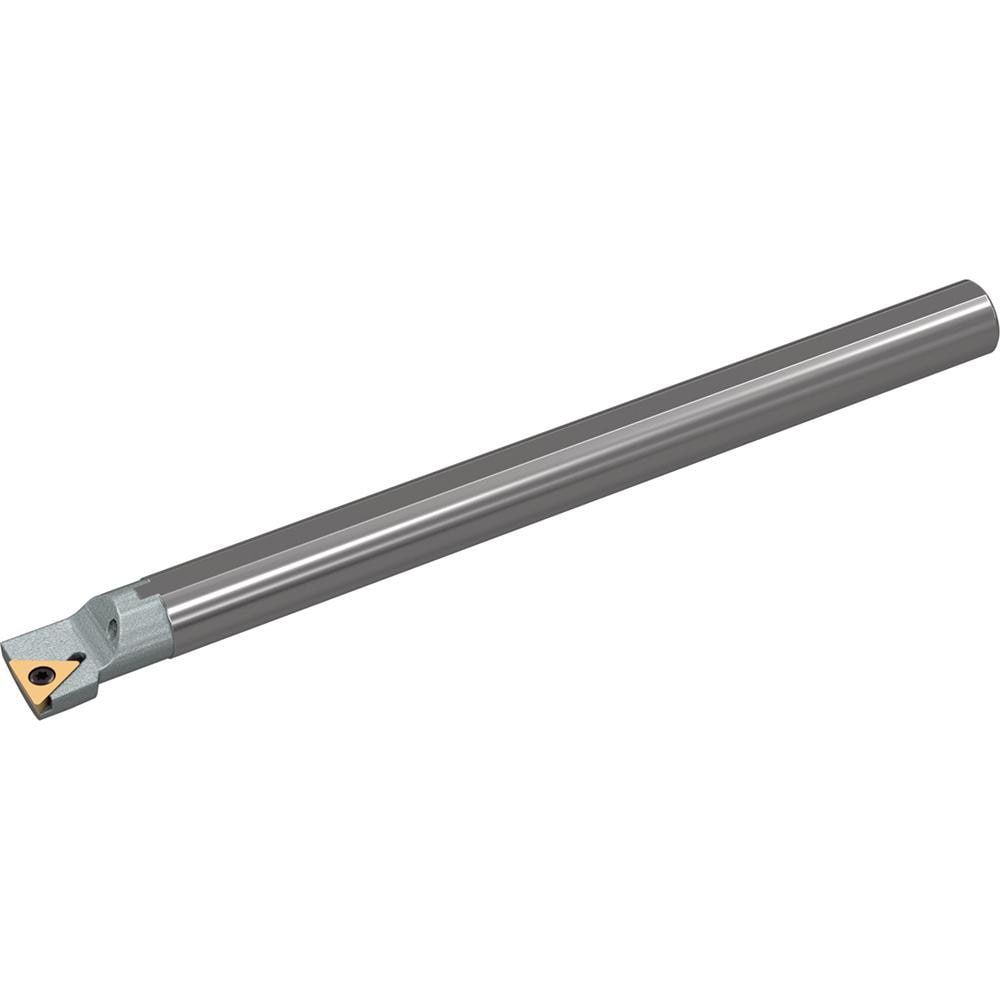

Brand: Widia / Part #: 3883444

Brand: Widia / Part #: 3883444


Item #: 02774891
Brand: Widia
Model #: 3883444

Product Specifications

Minimum Bore Diameter (mm) 20.000
Maximum Bore Depth (mm) 48.00
Toolholder Style STFPR
Tool Material Steel
Shank Diameter (mm) 16.0000
Hand of Holder Right Hand
Overall Length (mm) 200.0000
Compatible Insert Size Code TP..110204
Insert Holding Method Screw
Compatible Insert Shape Triangle
Insert Included No
Rake Positive
Cutting Direction Right Hand
Rake Angle 0.000
Lead Angle 90.000
Series A-STFP
Insert Inscribed Circle (Inch) 1/4
Compatible Insert Thickness (Decimal Inch) 0.0938
Compatible Insert Thickness (mm) 2.38
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (mm) 19.00
Center to Cutting Edge (mm) 11.00
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.0938
Insert Thickness (Inch) 3/32
Number of Inserts Included in Order 0
Manufacturers Catalog Number A16RSTFPR11
Radial Rake 0
Coolant Through Yes
$145.03

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
