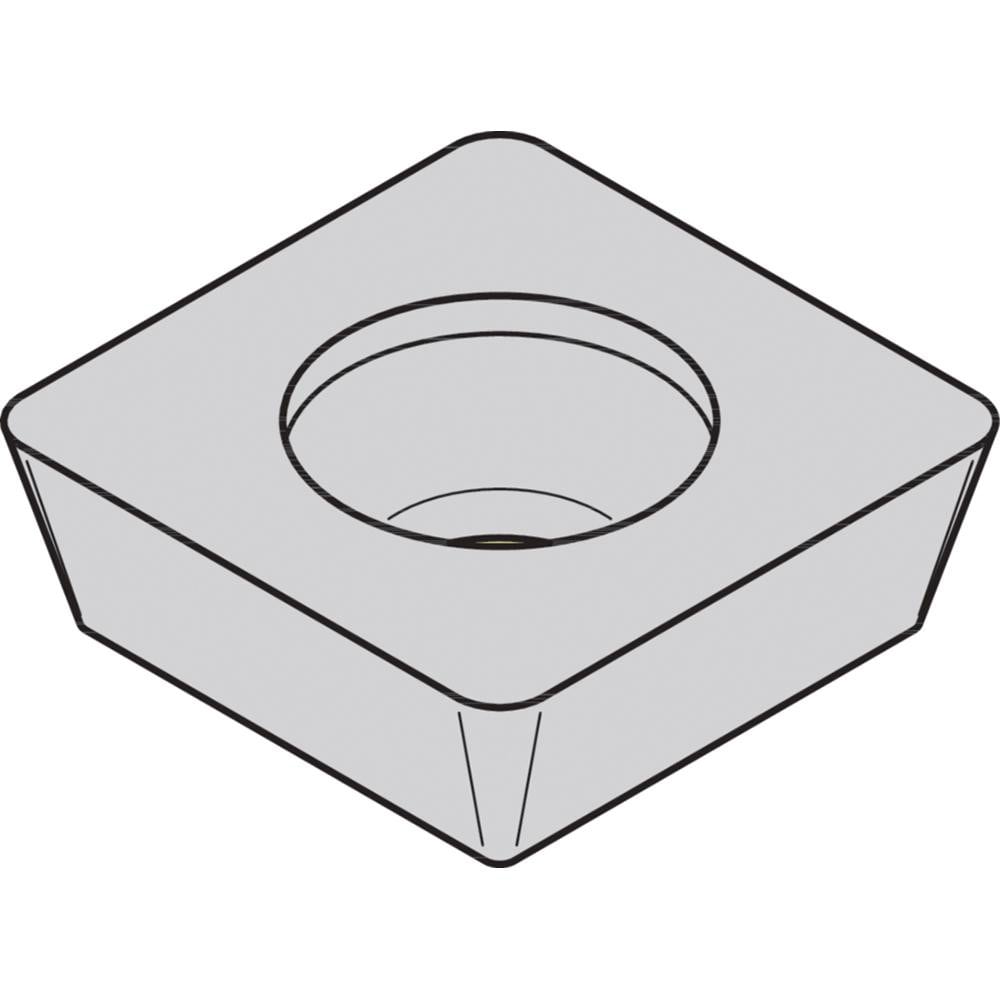

Brand: Widia / Part #: 2028333
Item #: 94031101
Brand: Widia
Model #: 2028333
Product Specifications
| Insert Style | SDMW |
| Insert Size Code | 0903 |
| Insert Size | 32 |
| Insert Material | Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | TTM08 |
| Length (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Relief Angle | 15.000 |
| Series | M25 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | SDMW322 |
| Iso Code | SDMW090308 |
| Manufacturers Catalog Number | SDMW322 |
| Cutter Series Compatibility | M25 SD0903 IN |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3750 |
