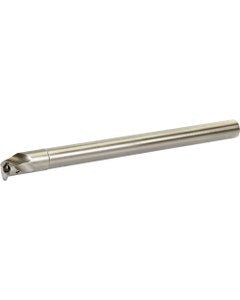

A25SSVUBR1634AE Right-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC13516
Brand: Kyocera Precision Tools
Model #: THC13516
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 250 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 250 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 40 mm |
| Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Height (H) | 24 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 210 mm |
| Body Material | Steel |
| Functional Width (WF) | 20.5 mm |
| Style | A...SVUB-AE |
| Master Insert Identification (MIID) | | VBMT33 | VBGT33 | VBGW33 VCGT33 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 34 mm |
| Weight of Item (WT) | 2.0366 |
