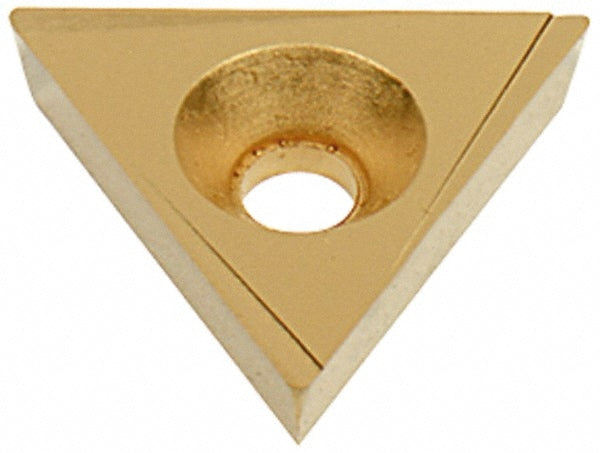

Brand: Widia / Part #: 2828547
Item #: 70731195
Brand: Widia
Model #: 2828547
Product Specifications
| Insert Style | TDCG |
| Insert Size Code | 130805R |
| Insert Material | Carbide |
| Material Grade | Micrograin |
| Thickness (Inch) | 3/64 |
| Manufacturer Grade | CG5 |
| Inscribed Circle (Decimal Inch) | 0.1600 |
| Hole Diameter (Decimal Inch) | 0.0950 |
| Maximum Depth of Cut (Decimal Inch) | 0.1780 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0070 |
| Relief Angle | 15.000 |
| Rake | Positive |
| Chipbreaker | Yes |
| Series | TDHH |
| Coating Process | PVD |
| Included Angle | 60.00 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Ansi Code | TDHH130805R |
| Iso Code | TDHH07S102R |
| Standards | ISO; ANSI |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Manufacturers Catalog Number | TDHH07S102R |
| Single or Multi Tipped | Multi Tipped |
| Length (Decimal Inch - 4 Decimals) | 0.2770 |
| Lead Angle | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.2770 |
| Coating/Finish | TiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.0469 |
