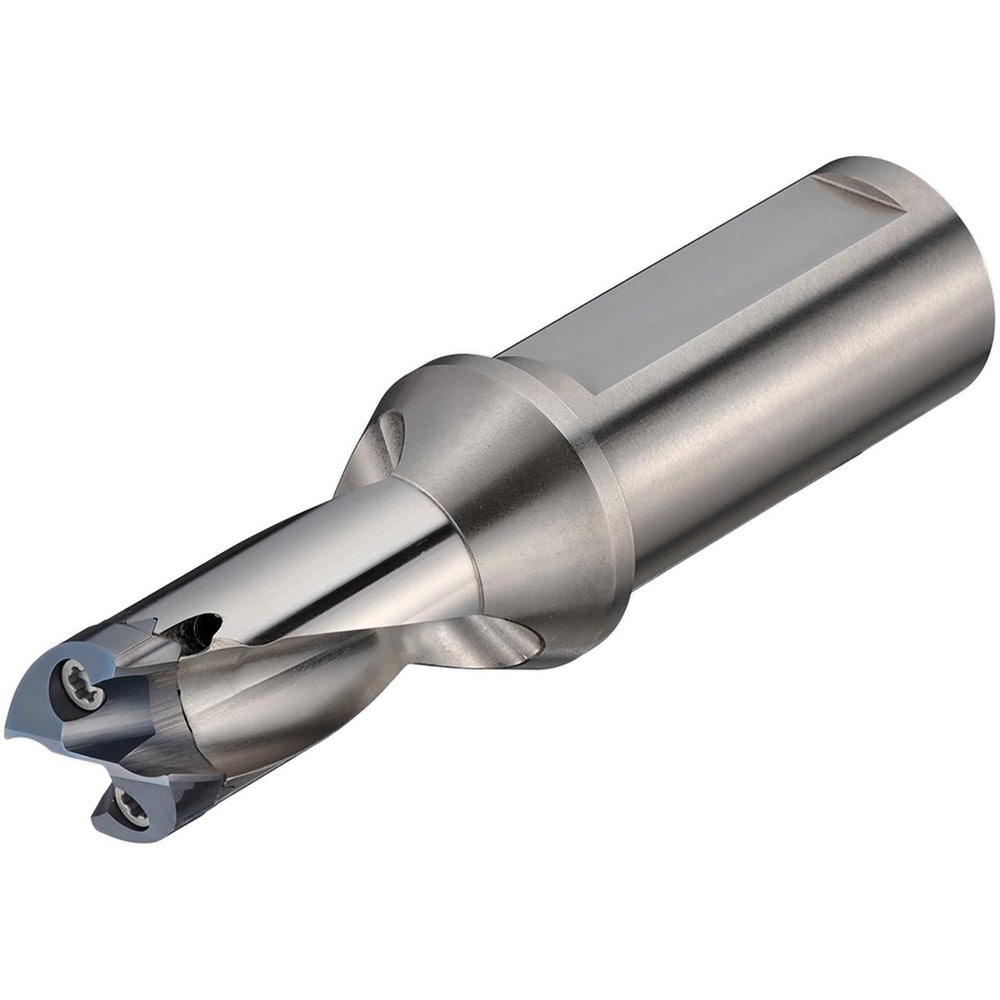

Brand: Sumitomo / Part #: 5L00657
Item #: 86905049
Brand: Sumitomo
Model #: 5L00657
Product Specifications
| Minimum Drill Diameter (mm) | 26.81 |
| Maximum Drill Diameter (mm) | 27.80 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 51.00 |
| Shank Type | Flatted |
| Insert Style | MTL; MEL; NAL; MFS; MTL-C |
| Shank Diameter (mm) | 32.0000 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 40.00 - 60.00 |
| Compatible Insert Style | MTL; MEL; NAL; MFS; MTL-C |
| Compatible Insert Size Code | 26.81 to 27.8 mm |
| Overall Length (mm) | 132.2000 |
| Series | SMD |
| Toolholder Style | SMDH |
| Shank Length (mm) | 60.000 |
| Tool Application | Holemaking |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
