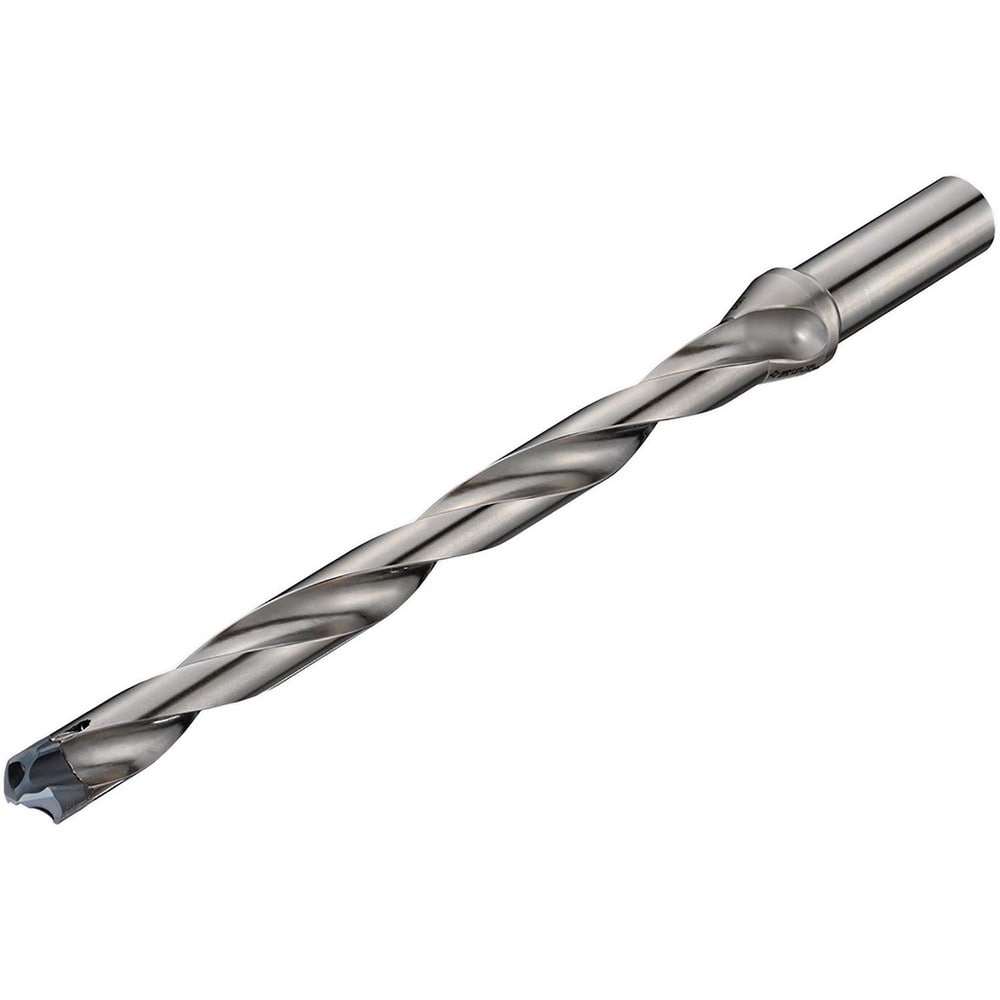

Brand: Sumitomo / Part #: 5L00090
Item #: 86856598
Brand: Sumitomo
Model #: 5L00090
Product Specifications
| Minimum Drill Diameter (mm) | 21.51 |
| Maximum Drill Diameter (mm) | 22.80 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 268.00 |
| Shank Type | Cylindrical |
| Insert Style | MTL; MEL; NAL; MFS; MTL-C |
| Shank Diameter (mm) | 25.0000 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Compatible Insert Style | MTL; MEL; NAL; MFS; MTL-C |
| Compatible Insert Size Code | 21.51 to 22.8 mm |
| Overall Length (mm) | 347.0000 |
| Series | SMD |
| Toolholder Style | SMDH |
| Shank Length (mm) | 56.000 |
| Tool Application | Holemaking |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
