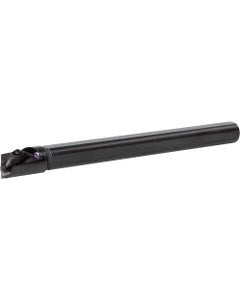

A24TDWLNR4 Right-Hand, Negative Rake, Coolant-Through Boring Bar
Item #: KY968606616
Brand: Kyocera Precision Tools
Model #: 8606616
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 12″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 12″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 2.3622″ |
| Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Height (H) | 1.374″ |
| Series/List # | DBCB |
| Shank Length (LS) | 9.6378″ |
| Body Material | Steel |
| Functional Width (WF) | 0.9055″ |
| Style | A...DWLN |
| Master Insert Identification (MIID) | | WNMG43 | WNGG43 | WNMM43 | WNGA43 | |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1-3/4″ |
| Weight of Item (WT) | 5.8 |
