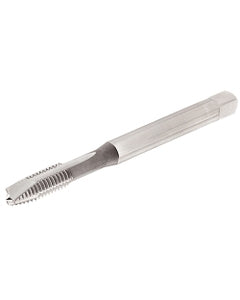

TPG UNF-#8-36-M HEST
Item #: EH444446103
Brand: Iscar
Model #: 4446103
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #8 |
| Standard | | DIN 371 | |
| Thread Pitch (TP) | 0.694 mm |
| Tool Type | Machine Through Hole Taps |
| Threads per Inch (TPI) | 36 Threads/" |
| Coating | | Black Oxide | |
| Thread Standard | THFT | |
| Drive Size (DRVS) | 0.134″ |
| Overall Length (OAL) | 2.48″ |
| Style | DIN 371 |
| Thread Cutting Part Length (THL) | 0.512″ |
| Measurement Type | Inch |
| Usable Length (LU) | 0.83″ |
| Grade | HEST |
| Connection Diameter Machine Side (DCONMS) | 0.177″ |
| Thread Size | #8 - 36 |
| Flute Count (NOF) | 3 |
| Body Material | HSS |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Form Type (THFT) | UN60 |
| Cutting Edge Material | HSS |
