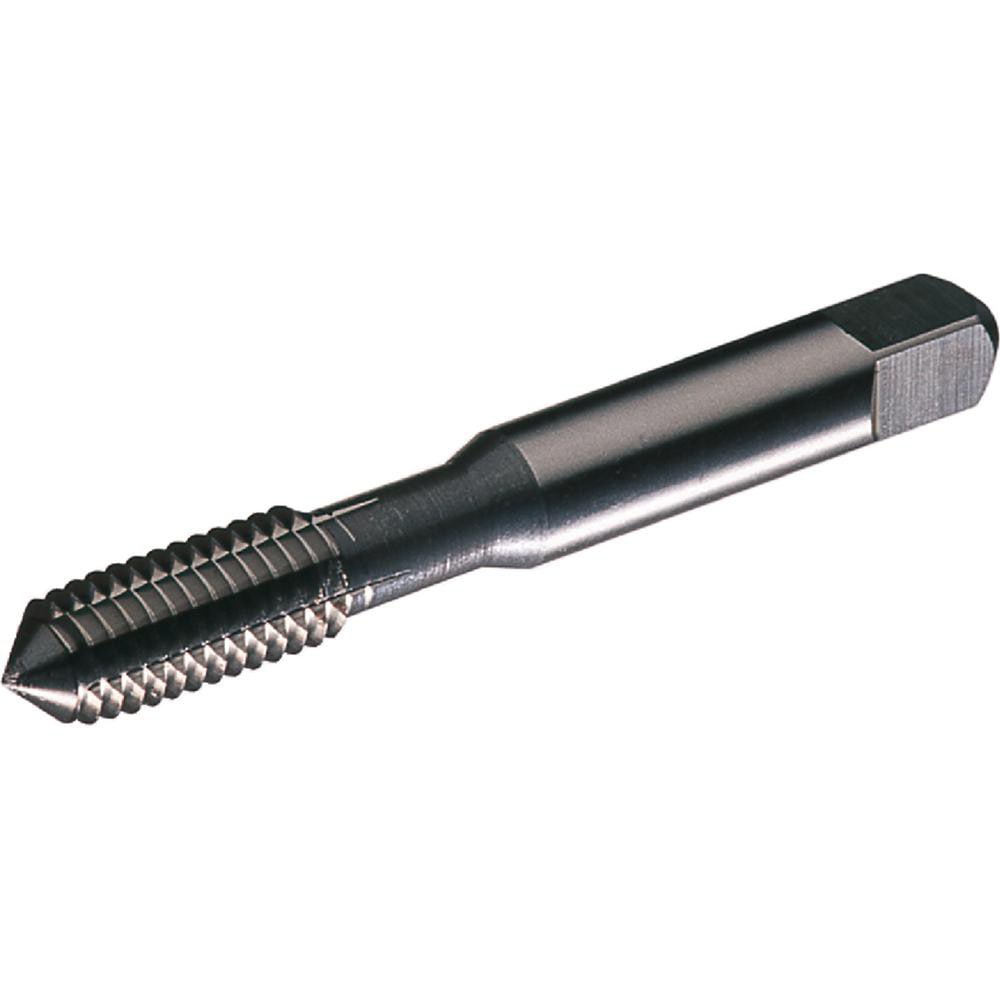

Brand: Widia / Part #: 2746502
Item #: 98977606
Brand: Widia
Model #: 2746502
Product Specifications
| Thread Size (mm) | M8x1.25 |
| Overall Length (mm) | 69.0900 |
| Chamfer | Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | D9 |
| Thread Pitch (mm) | 1.25 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 17.48 |
| Thread Depth (mm) | 28.60 |
| Thread Depth | 28.6000 |
| Shank Diameter (mm) | 8.0800 |
| Neck Length | 11.13 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Metal |
| Series | 5512TC |
| Tap Type | Blind |
| Tapping Depth (mm) | 28.60 |
| Shank Length (mm) | 40.490 |
| Threads per Inch | 20 |
| Class Of Fit | 6H |
| Coolant Through | No |
